Description

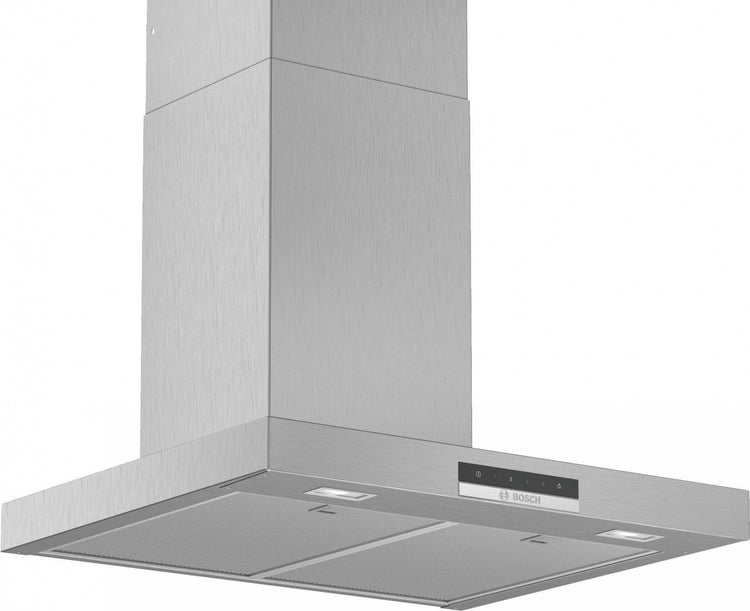

Serie | 4 wall-mounted cooker hood 60cm Stainless steel
Box design hood: performance and matching kitchen design complete in one hood.
- Especially silent: maximum extractor performance with minimal noise
- Grease filtration level: filters out over 85% of the grease from kitchen air.
- TouchSelect control: quick touch-control selection of desired settings and light.
- LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
- Intensive speed setting: removes strong kitchen odours quickly and effectively.
Additional information
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 368 m³/h
Intensive 605 m³/h - Noise max. Normal Level: 60 dB*
Features
- TouchControl with Electronic display
- Electronic display
- 3 power levels & intensive setting
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)
- 2 metal grease filter cassettes
- Designed for wall mounted installation
Design
- Chimney extractor hood
- TouchControl
- Electronic control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 605 m3/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 60 dB(A) re 1 pW
Intensive: 69 dB(A) re 1 pW - With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
Extraction rate in recirculation mode:
Max. normal use: 337 m³/h
Intensive: 441 m³/h
Noise level in recirculation mode:
Max. normal use: 70 dB(A) re 1 pW
Intensive: 74 dB(A) re 1 pW - Light Intensity: 242 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 635-965 x 600 x 500 mm
- Dimensions recirculating (HxWxD): 635-1075 x 600 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
703 x 600 x 500 mm - mounting with outer chimney
833-1163 x 600 x 500 mm - mounting with telescopic chimney - Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 48.1 kWh/year*
Optional accessories
- Recirculating kit DWZ0DX0A0
