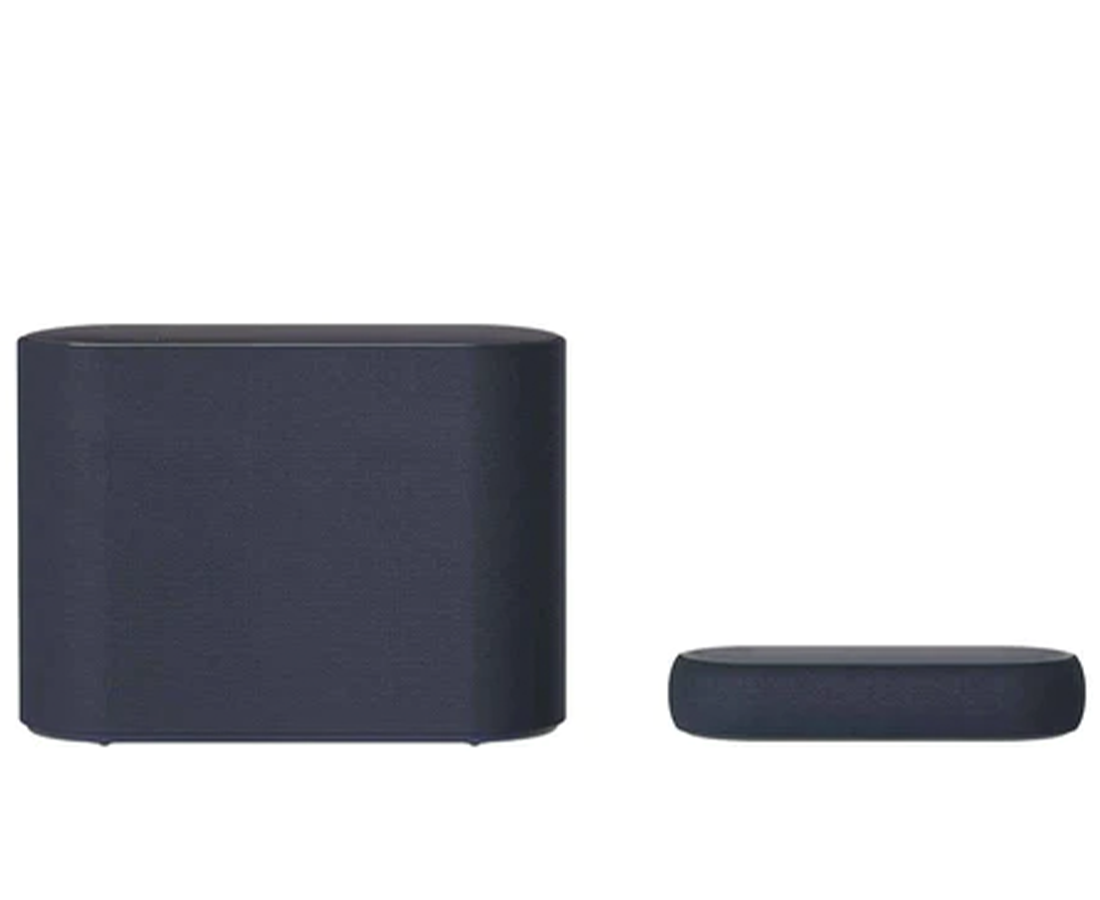

Designed to Fit In. Sound that Stands Out

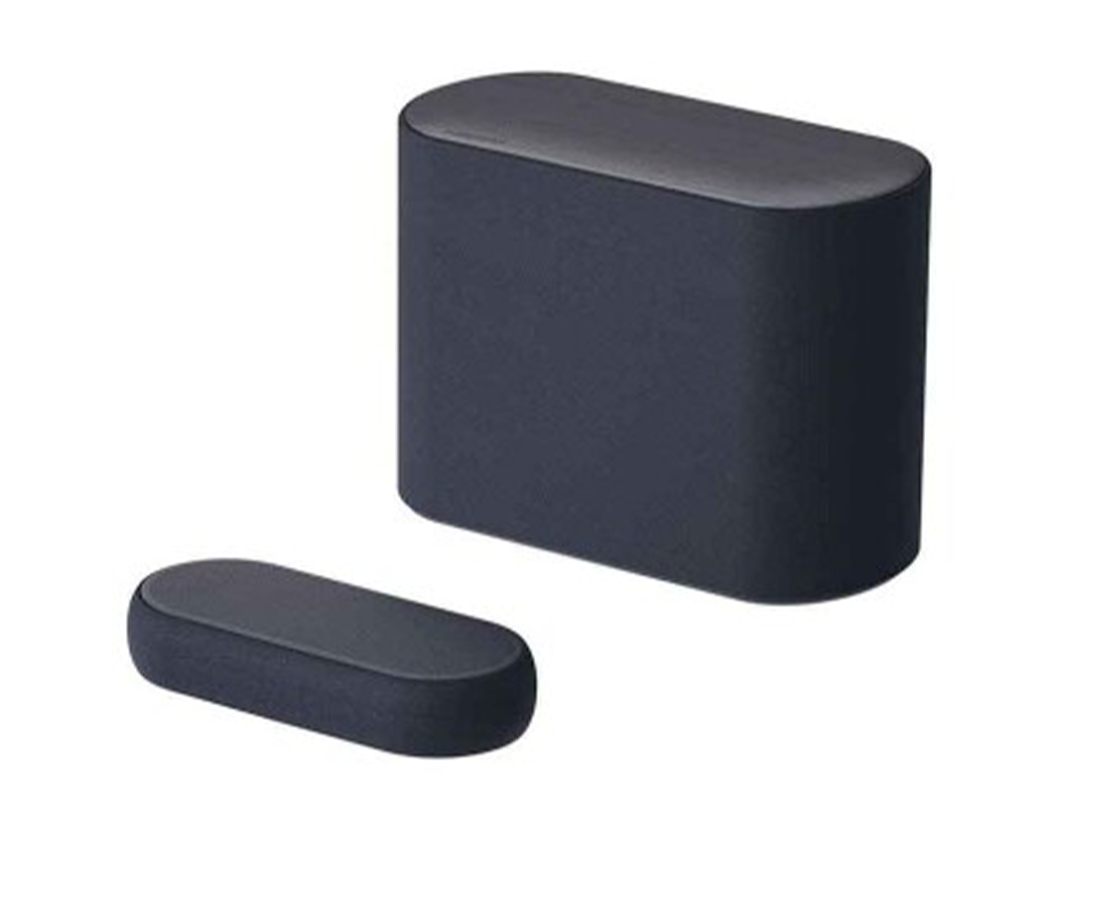

LG Eclair QP5 Soundbar is our smallest speaker to feature Dolby Atmos®, making it the perfect companion for your TV. It complements your interior with a new stylish design, yet provides powerful and immersive sound for movies and music. It’s like nothing you’ve ever seen or heard before.

*Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories.

Small and Compact

Small in Size, Big on Bass

Sound goes wide, bringing entertainment alive. 3.1.2 channels and 320W deliver immersive audio for small spaces.

Dolby Atmos & DTS:X

Sound All Around You

Dolby Atmos® envelops you in sound. Originally created for the cinema, Dolby Atmos pairs with up-firing height channels to deliver powerful, moving audio that flows all around you, even overhead.

*Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories.

Designed to be the Perfect Set

The matching design of LG Sound bars and LG TVs are made to complement your home as well as each other. Every design element has been carefully considered so that they become a part of your interior and add style to your space.

Upgrade Your Sound bar with LG’s AI Processor

TV Sound Mode Share* allows the sound bar to use the TV’s processing power and AI Sound Pro to make everything you hear clearer and more consistent, even from different content sources. Pair your LG Sound bar with your TV’s AI processor** to help your sound bar produce better sound.

*TV Sound Mode Share may vary by TV models.
**TV AI Processor version varies by TV models.

Sound-Field Expander

Expand Your Sound & Your Experience

Get the same premium sound experience in a compact design. Sound Field Expander stretches and widens the sound beyond the speakers immediate area.

Incredible Sound for Every Space

The compact LG Eclair QP5 lets you experience powerfully immersive sound wherever you place it. A bi-directional subwoofer gives you the same powerful bass as a full-size soundbar but with less vibration. So now you can enjoy movies and music without worrying about disturbing others.

*Speakers may require wired connection to televisions and other sources. Images are simulated.

LG Sound Bars – Designed with the Environment in Mind

LG is doing its part, thinking bigger to help the planet. Certain LG Sound Bars have been redesigned to support this important initiative. Internal parts are made with post-consumer recycled content* while outer mesh is made with recycled fabric from plastic bottles.** Internal packaging is made with recycled pulp***, and to reduce transport and CO2 emissions, the packaging shape has been designed to maximize efficiency.****

Specification:

SALES/SUB REGION

Sales Region

EU

Sub Region

ES,FS,IS,UK,CZ, HS MK,PL,RO,LA

MODEL INFORMATION

Brand Information

LG Soundbar

Model Name

QP5
Subwoofer Model Name

SPQP5-W

System (Main Chip)

MT8531
Mainset / Subwoofer Colour

Black / Black

SIZE (W × H × D) MM

Main (w/ Foot)

296 x 59.9 x 126

Matching TV Size (`20 New)

40 inch ↑
Subwoofer

388 x 291 x 185

MATERIAL

Main - Front / Top / Bottom

Jersey / Metal / Mold

Subwoofer - Front / Body

Jersey / Wood

WEIGHT(KG)

Main

1.55Kg

Subwoofer

7.7Kg
Gross Weight

12.0Kg

CARTON BOX

Size (W x H x D) MM

456 x 435 x 266

Type

Flexo
Colour

Yellow

CONTAINER Q

20ft

480

40ft

960
40ft (HC)

960

NUMBER OF CHANNELS

Number of Channels

3.1.2ch

OUTPUT POWER(THD 10%)

Total

320W

Front

20W*2
Center

20W

Top

20W*2
Subwoofer

220W(Wireless)

SPEAKER UNIT FRONT(L/R)

SPL

82dB

System

Closed
Tweeter Unit

X

Woofer Unit

2 Inch
Impedance

4 Ohm

SPEAKER UNIT SUBWOOFER

SPL

85dB

Woofer Unit

5.25 inch (2EA)
Impedance

3 ohm

NO OF SPEAKER UNIT

Number Of Speakers

7 EA

CONNECTIVITY GENERAL

Optical

Yes (1)

HDMI 2.1 (HDCP 2.3) - In / Out

Yes (1) / Yes (1)
HDR10 / HDR10+

Yes / -

Dolby Vision

Yes
USB

Yes

CONNECTIVITY WIRELESS

Bluetooth Version

4.0

Bluetooth Codec - SBC / AAC

Yes / Yes

DISPLAY INFORMATION

LED Indicator Colour

Yes (3 Color, 3 EA)

SOUND EFFECT

AI Sound Pro

Yes

Standard

Yes (w/ Meridian)
Cinema

Yes

Game

Yes
Dolby Atmos

Yes

DTS:X

Yes

SOUND CONTROL

User EQ - RCU / App

X / Yes

Night Time On/Off - RCU / App

X / Yes
Dynamic Rage On/Off - RCU / App

X / Yes

Auto Volume Leveler On/Off - RCU / App

X / Yes
SFX (Default)

Yes

TV Sound Share - TV "AI Sound Pro"

Yes

CONVENIENCE

Remote App - iOS / Android OS

Yes / Yes

Smart Phone File Playback (Bluetooth)

Yes
NSU / FOTA

X / Yes

Control with your TV Remote
(Vol+/-, Mute)

Yes / Yes
Sound Sync - Bluetooth (LG TV) / Optical

Yes / Yes

Auto Power On/Off
Bluetooth (LGTV) / Optical

Yes / Yes
Auto Power On/Off - RCU / APP

X / Yes

A/V Sunc (0~300ms) - RCU / APP

X / Yes
HDMI SIMPLINK

Yes

HDMI Audio Return Channel (ARC)

Yes
HDMI Audio Return Channel (e-ARC)

Yes

Woofer Level (-15 ~ 6dB, 1dB/Step)

Yes
Channel Level (-6 ~ 6dB, 1dB/Step)
Top / Center / Surround / Rear / Rear Top

Yes / Yes / X / X / X

Mute

Yes
Auto Dimmer

Yes

USB Host / Charge

Yes / X
Built-in Music

Yes (1 song)

Bluetooth Stand-By

Yes

AUDIO FORMAT(BITSTREAM)

LPCM

Yes

Dolby TrueHD

Yes
Dolby Digital Plus

Yes

Dolby Digital

Yes
DTS-HD Master Audio

Yes

DTS-HD High Resolution

Yes
DTS Digital Surround

Yes

AAC / AAC+

Yes

FILE FORMAT

FLAC - C4A / USB

X / Yes

OGG - C4A / USB

X / Yes
WAV - C4A / USB

X / Yes

MP3 - C4A / USB

X / Yes
WMA - C4A / USB

X / Yes

AAC - C4A / USB

X / Yes

POWER MAIN

Adapter

19V, 3.42A

Power Off Consumption

0.5W ↓
Power Consumption

36W

POWER SUBWOOFER

Type (SMPS)

100~240V, 50/60Hz

Power Consumption

38W
Wireless Frequency

5GHz

ACCESSORY MANUAL

Web Manual (File)

Yes (Full)

Built-in Manual (Book) (Simple or Full)

Yes (Simple)
Open Source - Yes (Full or Simple) / X

Yes (Full)

ACCESSORY REMOTE CONTROL

Model Name

RAV21

Battery (Size)

AA x 2
Battery Built-in

Yes
