Designed to Fit In. Sound that Stands Out
LG Eclair QP5 Soundbar is our smallest speaker to feature Dolby Atmos®, making it the perfect companion for your TV. It complements your interior with a new stylish design, yet provides powerful and immersive sound for movies and music. It’s like nothing you’ve ever seen or heard before.
*Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories.

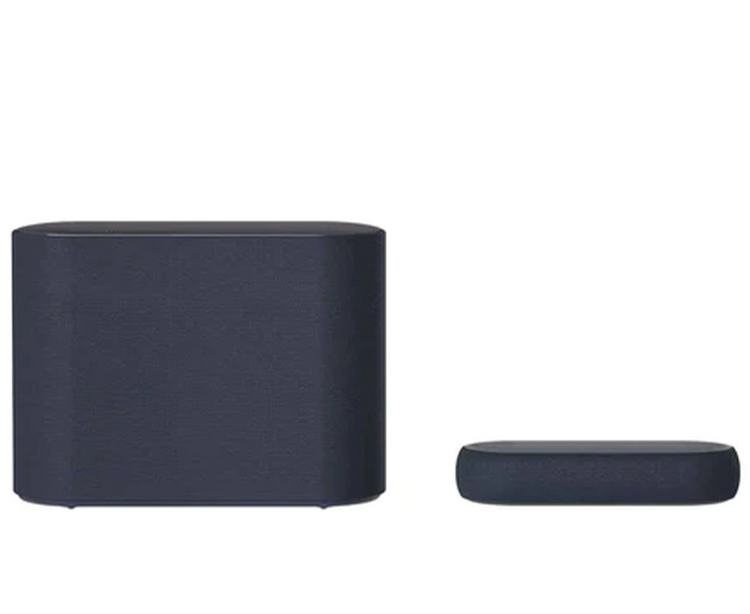

Small and Compact
Small in Size, Big on Bass
Sound goes wide, bringing entertainment alive. 3.1.2 channels and 320W deliver immersive audio for small spaces.
Dolby Atmos & DTS:X
Sound All Around You
Dolby Atmos® envelops you in sound. Originally created for the cinema, Dolby Atmos pairs with up-firing height channels to deliver powerful, moving audio that flows all around you, even overhead.
*Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories.

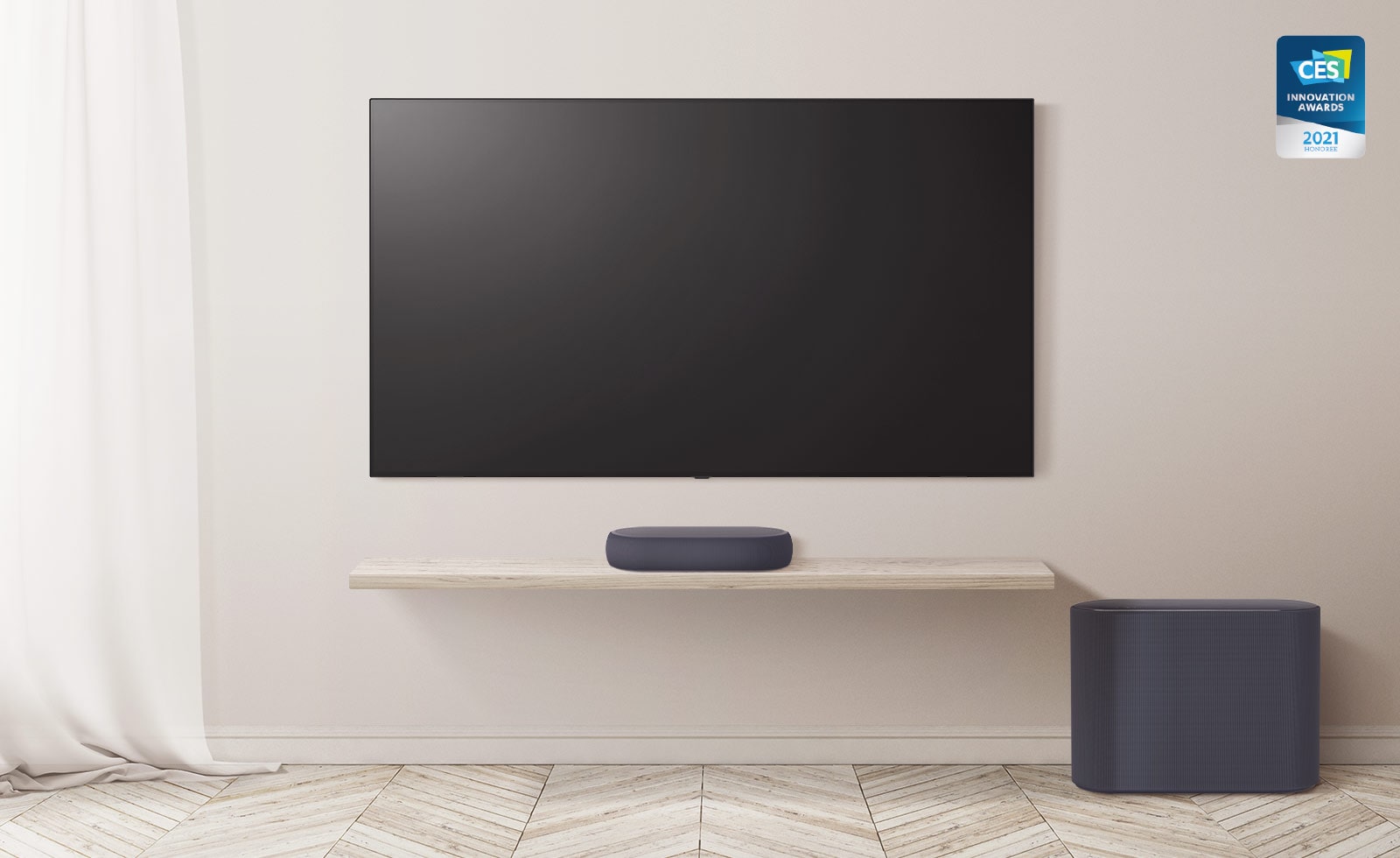

Designed to be the Perfect Set
The matching design of LG Sound bars and LG TVs are made to complement your home as well as each other. Every design element has been carefully considered so that they become a part of your interior and add style to your space.
Upgrade Your Sound bar with LG’s AI Processor
TV Sound Mode Share* allows the sound bar to use the TV’s processing power and AI Sound Pro to make everything you hear clearer and more consistent, even from different content sources. Pair your LG Sound bar with your TV’s AI processor** to help your sound bar produce better sound.
*TV Sound Mode Share may vary by TV models.
**TV AI Processor version varies by TV models.
**TV AI Processor version varies by TV models.
Sound-Field Expander
Expand Your Sound & Your Experience
Get the same premium sound experience in a compact design. Sound Field Expander stretches and widens the sound beyond the speakers immediate area.

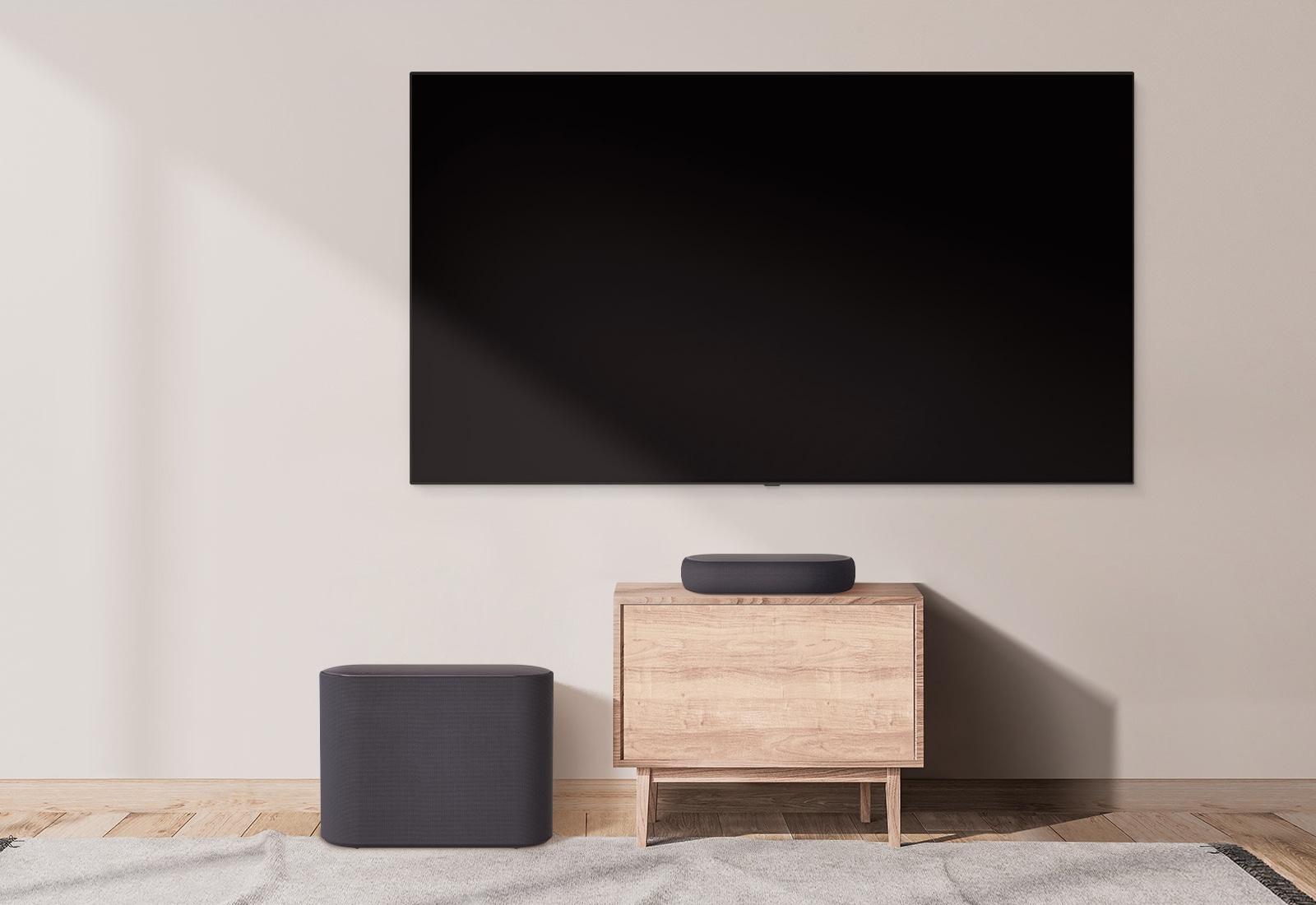

Incredible Sound for Every Space
The compact LG Eclair QP5 lets you experience powerfully immersive sound wherever you place it. A bi-directional subwoofer gives you the same powerful bass as a full-size soundbar but with less vibration. So now you can enjoy movies and music without worrying about disturbing others.
*Speakers may require wired connection to televisions and other sources. Images are simulated.
LG Sound Bars – Designed with the Environment in Mind
LG is doing its part, thinking bigger to help the planet. Certain LG Sound Bars have been redesigned to support this important initiative. Internal parts are made with post-consumer recycled content* while outer mesh is made with recycled fabric from plastic bottles.** Internal packaging is made with recycled pulp***, and to reduce transport and CO2 emissions, the packaging shape has been designed to maximize efficiency.****
Specification:
SALES/SUB REGION
-
Sales RegionEUSub RegionES,FS,IS,UK,CZ, HS MK,PL,RO,LA
MODEL INFORMATION
-
Brand InformationLG SoundbarModel NameQP5
-
Subwoofer Model NameSPQP5-WSystem (Main Chip)MT8531
-
Mainset / Subwoofer ColourBlack / Black
SIZE (W × H × D) MM
-
Main (w/ Foot)296 x 59.9 x 126Matching TV Size (`20 New)40 inch ↑
-
Subwoofer388 x 291 x 185
MATERIAL
-
Main - Front / Top / BottomJersey / Metal / MoldSubwoofer - Front / BodyJersey / Wood
WEIGHT(KG)
-
Main1.55KgSubwoofer7.7Kg
-
Gross Weight12.0Kg
CARTON BOX
-
Size (W x H x D) MM456 x 435 x 266TypeFlexo
-
ColourYellow
CONTAINER Q
-
20ft48040ft960
-
40ft (HC)960
NUMBER OF CHANNELS
-
Number of Channels3.1.2ch
OUTPUT POWER(THD 10%)
-
Total320WFront20W*2
-
Center20WTop20W*2
-
Subwoofer220W(Wireless)
SPEAKER UNIT FRONT(L/R)
-
SPL82dBSystemClosed
-
Tweeter UnitXWoofer Unit2 Inch
-
Impedance4 Ohm
SPEAKER UNIT SUBWOOFER
-
SPL85dBWoofer Unit5.25 inch (2EA)
-
Impedance3 ohm
NO OF SPEAKER UNIT
-
Number Of Speakers7 EA
CONNECTIVITY GENERAL
-
OpticalYes (1)HDMI 2.1 (HDCP 2.3) - In / OutYes (1) / Yes (1)
-
HDR10 / HDR10+Yes / -Dolby VisionYes
-
USBYes
CONNECTIVITY WIRELESS
-
Bluetooth Version4.0Bluetooth Codec - SBC / AACYes / Yes
DISPLAY INFORMATION
-
LED Indicator ColourYes (3 Color, 3 EA)
SOUND EFFECT
-
AI Sound ProYesStandardYes (w/ Meridian)
-
CinemaYesGameYes
-
Dolby AtmosYesDTS:XYes
SOUND CONTROL
-
User EQ - RCU / AppX / YesNight Time On/Off - RCU / AppX / Yes
-
Dynamic Rage On/Off - RCU / AppX / YesAuto Volume Leveler On/Off - RCU / AppX / Yes
-
SFX (Default)YesTV Sound Share - TV "AI Sound Pro"Yes
CONVENIENCE
-
Remote App - iOS / Android OSYes / YesSmart Phone File Playback (Bluetooth)Yes
-
NSU / FOTAX / YesControl with your TV Remote
(Vol+/-, Mute)Yes / Yes -
Sound Sync - Bluetooth (LG TV) / OpticalYes / YesAuto Power On/Off
Bluetooth (LGTV) / OpticalYes / Yes -
Auto Power On/Off - RCU / APPX / YesA/V Sunc (0~300ms) - RCU / APPX / Yes
-
HDMI SIMPLINKYesHDMI Audio Return Channel (ARC)Yes
-
HDMI Audio Return Channel (e-ARC)YesWoofer Level (-15 ~ 6dB, 1dB/Step)Yes
-
Channel Level (-6 ~ 6dB, 1dB/Step)
Top / Center / Surround / Rear / Rear TopYes / Yes / X / X / XMuteYes -
Auto DimmerYesUSB Host / ChargeYes / X
-
Built-in MusicYes (1 song)Bluetooth Stand-ByYes
AUDIO FORMAT(BITSTREAM)
-
LPCMYesDolby TrueHDYes
-
Dolby Digital PlusYesDolby DigitalYes
-
DTS-HD Master AudioYesDTS-HD High ResolutionYes
-
DTS Digital SurroundYesAAC / AAC+Yes
FILE FORMAT
-
FLAC - C4A / USBX / YesOGG - C4A / USBX / Yes
-
WAV - C4A / USBX / YesMP3 - C4A / USBX / Yes
-
WMA - C4A / USBX / YesAAC - C4A / USBX / Yes
POWER MAIN
-
Adapter19V, 3.42APower Off Consumption0.5W ↓
-
Power Consumption36W
POWER SUBWOOFER
-
Type (SMPS)100~240V, 50/60HzPower Consumption38W
-
Wireless Frequency5GHz
ACCESSORY MANUAL
-
Web Manual (File)Yes (Full)Built-in Manual (Book) (Simple or Full)Yes (Simple)
-
Open Source - Yes (Full or Simple) / XYes (Full)
ACCESSORY REMOTE CONTROL
-
Model NameRAV21Battery (Size)AA x 2
-
Battery Built-inYes
