Description

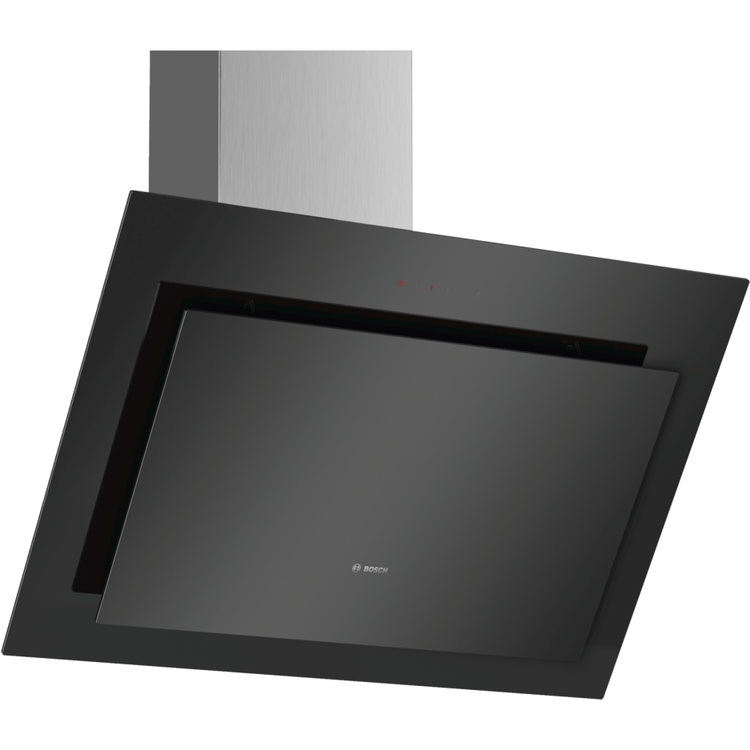

Serie | 4 wall-mounted cooker hood 80cm clear glass black printed
Angled hood: perfect for keeping an eye on your pots and pans.
- Especially silent: maximum extractor performance with minimal noise
- Easy-to-clean interior: hidden screws and cables along with rounded edges make cleaning easy.
- TouchSelect control: quick touch-control selection of desired settings and light.
- LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
- Intensive speed setting: removes strong kitchen odours quickly and effectively.
Additional information
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 416 m³/h
Intensive 700 m³/h - Noise max. Normal Level: 58 dB*
Special features
- TouchControl with Electronic display
- 3 power levels & intensive setting
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)
- 2 metal grease filter cassettes
- easy to clean Inner frame
- Designed for wall mounted installation
- Rim ventilation
Design
- Chimney extractor hood
- TouchControl
- Electronic control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- In recirculation operation chimless use possible
- Easy installation system
- Extraction rate according to EN 61591 max. 416 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 58 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 58 dB(A) re 1 pW
Intensive: 67 dB(A) re 1 pW - Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 58 dB (A) re 1pW
- Light Intensity: 90 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 928-1198 x 790 x 499 mm
- Dimensions recirculating (HxWxD): 988-1258 x 790 x 499 mm
- Dimensions recirculating with CleanAir module (HxWxD):
1118 x 790 x 499 mm - mounting with outer chimney
1188-1458 x 790 x 499 mm - mounting with telescopic chimney - Blower Efficiency Class: B*
- Lighting Efficiency Class: B*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 56.6 kWh/year*
Optional accessories
- Recirculating kit DWZ0AK0R0
