Description

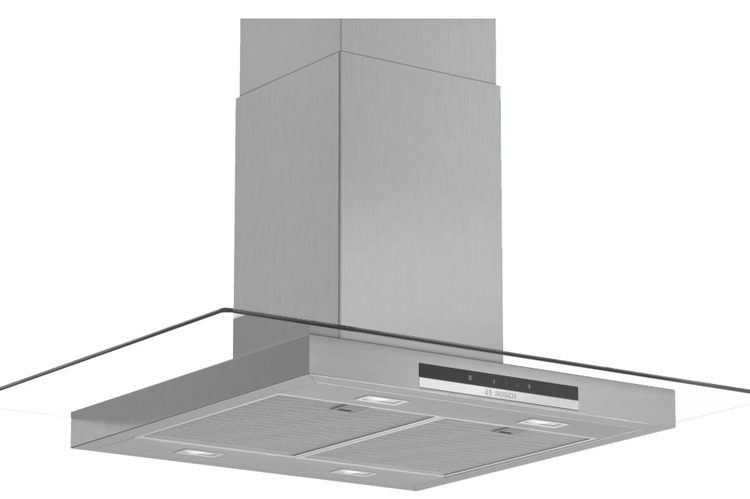

Serie | 4 island cooker hood 90cm clear glass
Stylish island chimney hoods perfectly complement island hob installations.
- Especially silent: maximum extractor performance with minimal noise
- Easy-to-clean interior: hidden screws and cables along with rounded edges make cleaning easy.
- Grease filtration level: filters out over 85% of the grease from kitchen air.
- TouchSelect control: quick touch-control selection of desired settings and light.
- LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
Additional information
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 429 m³/h
Intensive 732 m³/h - Noise max. Normal Level: 60 dB*
Special features
- TouchControl with Electronic display
- 3 power levels & intensive setting
- 4 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)
- 2 metal grease filter cassettes
- easy to clean Inner frame
Design
- Island chimney hood
- Clear glass
- Designed for ceiling mounted installation
- TouchControl
- Electronic control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Extraction rate according to EN 61591 max. 429 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 60 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 60 dB(A) re 1 pW
Intensive: 71 dB(A) re 1 pW - Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 60 dB (A) re 1pW
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
Extraction rate in recirculation mode:
Max. normal use: 390 m³/h
Intensive: 527 m³/h
Noise level in recirculation mode:
Max. normal use: 67 dB(A) re 1 pW
Intensive: 73 dB(A) re 1 pW - Power rating: 256 W
- Light Intensity: 502 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 744-924 x 898 x 600 mm
- Dimensions recirculating (HxWxD): 744-1044 x 898 x 600 mm
- Dimensions recirculating with CleanAir module (HxWxD): 812-1044 x 898 x 600 mm
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 71.3 kWh/year*
Optional accessories
- Recirculating kit DHZ1230
