Installation system: IDH comfort installation |

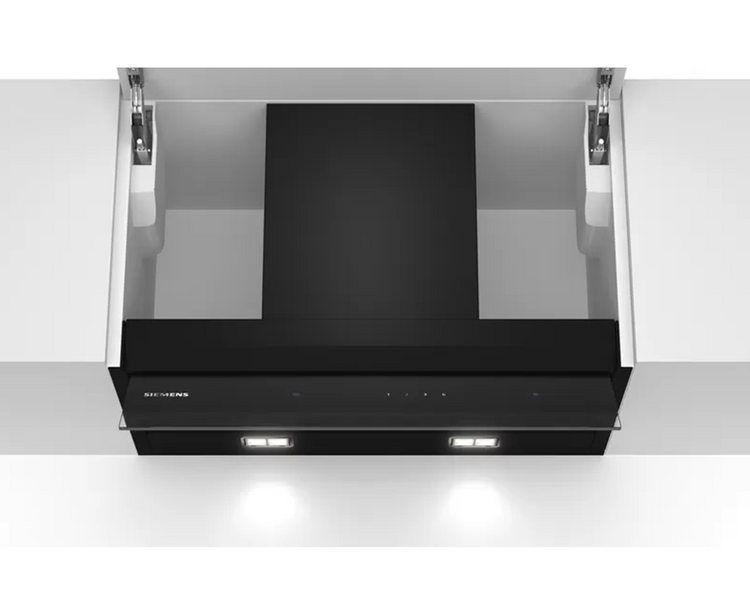

Suitable for installation in bottomless wall cupboards. |
Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm. |
For installation in higher wall cupboards chimney extensions are available as optional accessories. |
Chimney extensions are compatible with the available recirculation kits. |
Dimensions (HxWxD): 340 x 597 x 298 mm |
Built-in dimensions (HxWxD): 340 x 560 x 300 mm |
Diameter pipe Ø 150 mm (Ø 120 mm enclosed) |
Back-pressure flap: Yes |
Electrical cable length 1.3 m |
Please reference the built-in dimensions provided in the installation drawing |
