Description

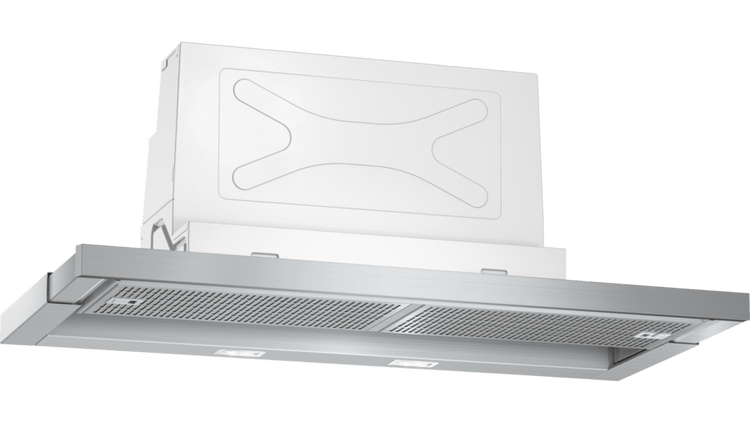

N 70 telescopic cooker hood 90 cm Stainless steel
Telescopic hood: designed to provide powerful extraction without impacting on your kitchen space or design. These hoods pull out from underneath a cabinet when required for a streamlined kitchen.
- EfficientDrive: save energy and enjoy a quieter kitchen thanks to efficient brushless motor technology
- Intensive speed setting: increases the extraction rate when the steam gets intense
- Dimmer Function – easily dim the light according to your mood with the touch of a finger
- Interval Ventilation – automatically ventilates every hour for crisp, clean air
- Automatic After-running – ventilation continues for several minutes after you turn it off
Technical Specification
Features
- Soft touch control with 7 segment LED display
- 3 power levels and 2 intensive settings
- SoftLight with dimmer function
- 3 x 1,5W LED
- Efficient BLDC technology
- Noise reduction function
- Interval operation
- Automatic intensive revert (6mins)
- Automatic after running (10 minutes)
- 3 metal grease filter cassettes
- Saturation indicator for grease filter
Design
- 90 cm wide
- Stainless steel
- Handle strip specification: stainless steel with logo
- Steel filter cover
Performance
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 395 m³/h
Intensive 700 m³/h - Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 53 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 53 dB(A) re 1 pW
Intensive: 69 dB(A) re 1 pW - With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
Extraction rate in recirculation mode:
Max. normal use: 358 m³/h
Intensive: 641 m³/h
Noise level in recirculation mode:
Max. normal use: 60 dB(A) re 1 pW
Intensive: 71 dB(A) re 1 pW - Colour Temperature: 3500 K
- Light Intensity: 355 lux
- Power rating: 146 W
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 38.8 kWh/year*
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
Planning and installation information
- Telescopic comfort installation
- Dimensions (HxWxD): 426 x 898 x 290 mm
- Built-in dimensions (HxWxD): 385 x 524 x 290 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Electrical cable length 1.75 m
