Description

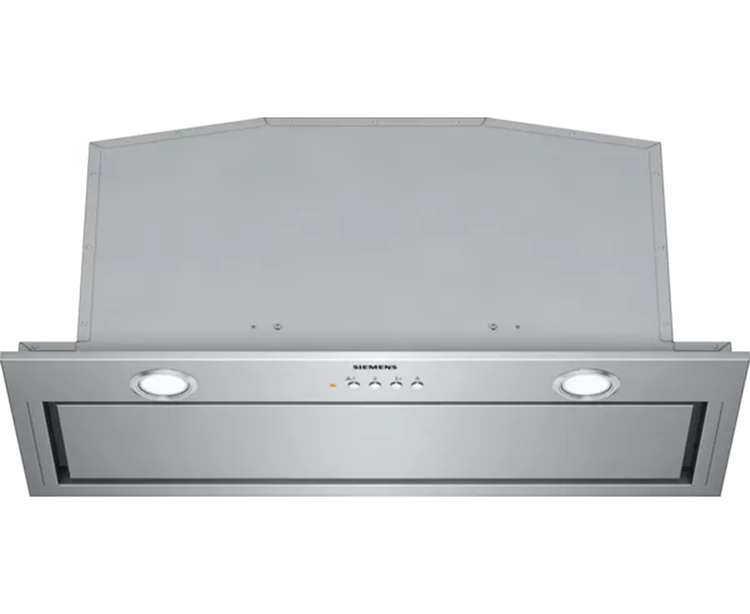

iQ500 canopy cooker hood 70 cm Stainless steel
The powerful canopy cooker hood is concealed in a unit above the hob.
- LED lights: for optimal visibility and ambience while cooking.
- For peak performance - Intensive setting with automatic revert
Additional Information
Design
- 70 cm wide
- Stainless Steel
- White electronic display
- Electronic control via Soft touch button control
- For installation in a kitchen cabinet
- Designed for suspended or flush ceiling installation
Key Information
- Soft touch button control for extractor speeds and light
- 2 x 1W LED lights
- 2 x metal grease filter cassettes
- Steel filter cover, Steel filter cover
- Rim ventilation
Performance/technical information
- Suitable for ducted and re-circulating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 630 m³/h
Intensive 730 m³/h - Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 66 dB(A) re 1 pW
Intensive: 69 dB(A) re 1 pW - 3 x power levels plus intensive setting
- Power rating: 277 W
- Automatic intensive revert
- Noise max. Normal Level: 66 dB*
- Extractor hose 120 mm
- Dimensions (WxD): 700 x 300 mm
- Built-in dimensions (HxWxD): 418 x 676 x 264 mm
- Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Light Intensity: 244 lux
- Colour Temperature: 4000 K
- Average Energy Consumption: 104.2 kWh/year*
- Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
- Blower Efficiency Class: C*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
