Description

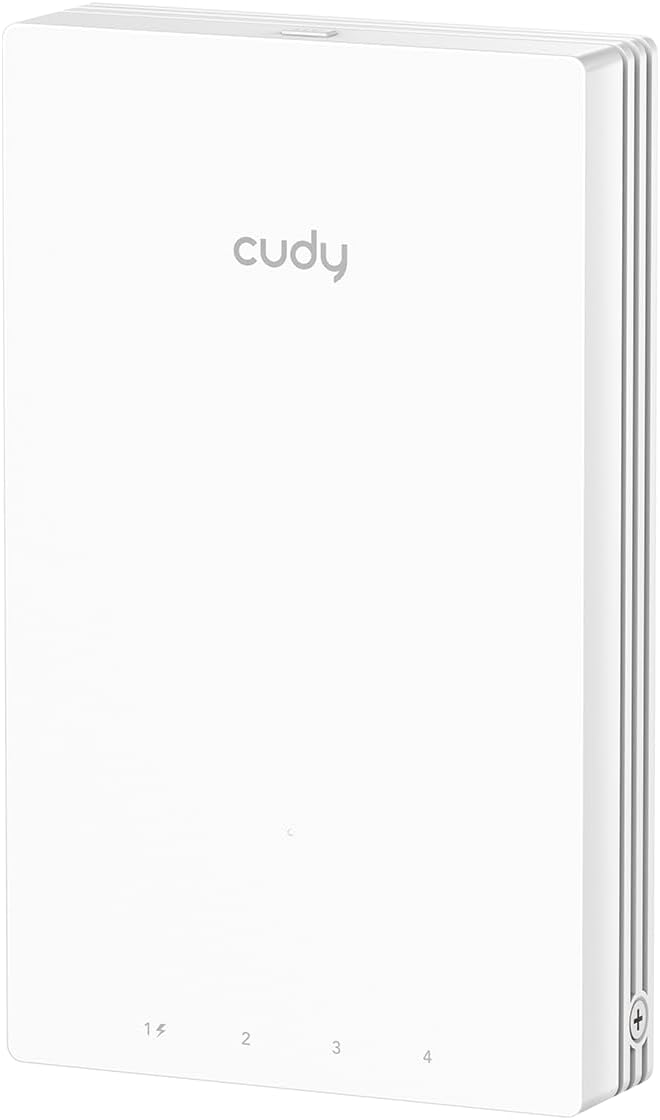

Deliver fast and reliable Wi-Fi connectivity with the Cudy AP3000 Wall AX3000 Wi-Fi 6 Access Point. Designed for discreet wall-mounted installation, this compact access point combines high-speed dual-band Wi-Fi 6 with integrated Gigabit Ethernet connectivity, making it ideal for apartments, hotels, offices and other room-based network installations.
Delivering combined wireless speeds of up to 2976Mbps, the AP3000 Wall provides up to 2402Mbps on the 5GHz band and 574Mbps on 2.4GHz, helping provide fast wireless connectivity for multiple devices.
AX3000 Wi-Fi 6 Performance
Wi-Fi 6 technology provides greater speed, capacity and efficiency for modern connected environments. The AP3000 Wall delivers up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz.
Discreet Wall-Mounted Design
Designed to fit neatly into a standard electrical wall box, the AP3000 Wall provides a clean, low-profile installation that's particularly well suited to hotels, apartments, bedrooms, offices and meeting rooms.

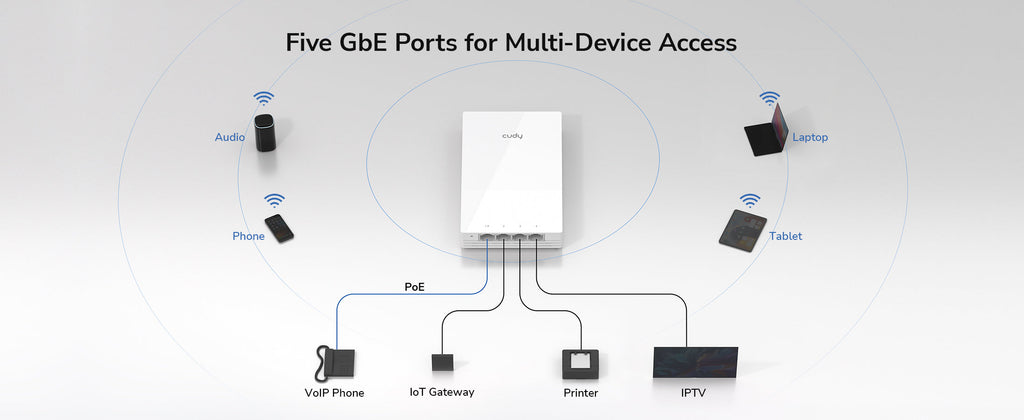

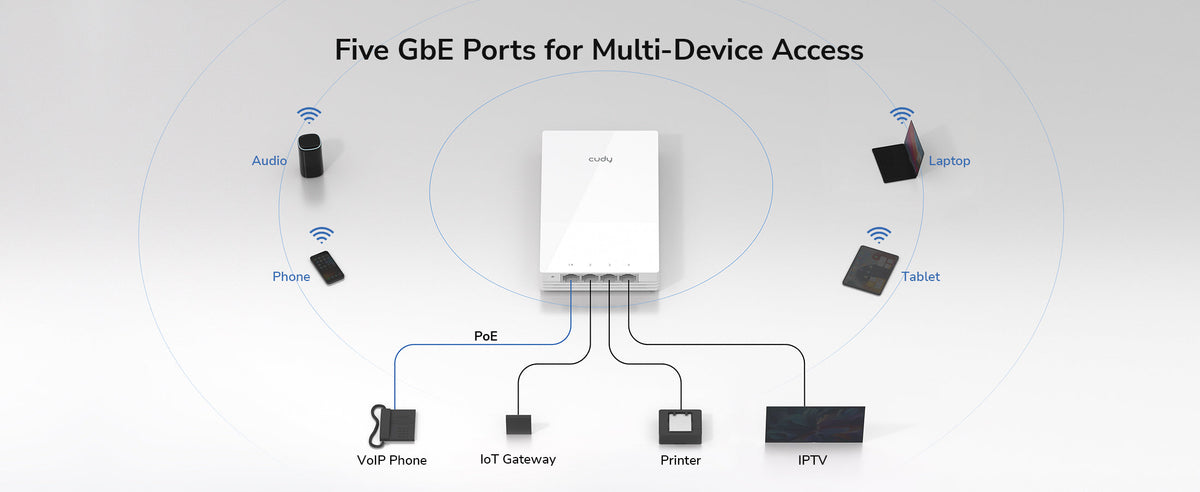

Built-In Gigabit Ethernet
Five Gigabit Ethernet connections provide flexible wired networking alongside Wi-Fi, allowing compatible televisions, computers, IP phones and other devices to connect directly to the network.

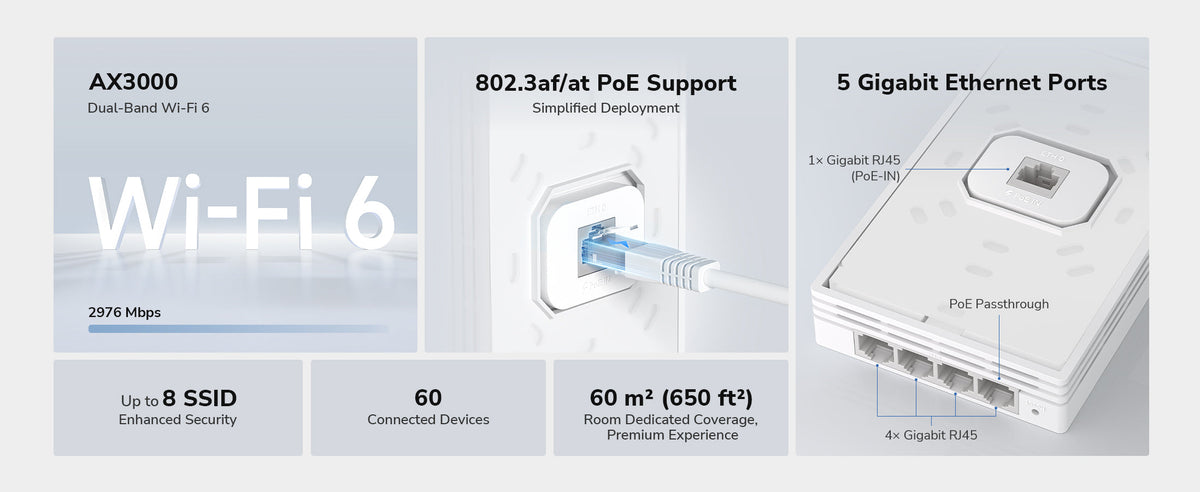

Power over Ethernet
Power over Ethernet allows both network data and electrical power to reach the access point through a single Ethernet cable, helping simplify installation and reduce unnecessary cabling.
The AP3000 Wall also supports PoE passthrough for powering a compatible downstream device.
Coverage for Multiple Devices
Designed to provide wireless coverage across an area of up to approximately 60m², the access point is recommended for environments with up to 60 connected devices.
Cudy Mesh Support
Cudy Mesh compatibility allows the access point to form part of a wider compatible Cudy network, helping provide seamless Wi-Fi coverage across larger properties.
Centralised Network Management
For larger installations, compatible Cudy AP Controllers can centrally manage multiple access points, making the AP3000 Wall suitable for hospitality, commercial and multi-room installations.
Key Features
- AX3000 wall-mounted Wi-Fi 6 access point
- Dual-band 2.4GHz and 5GHz Wi-Fi
- Up to 2976Mbps combined wireless speed
- Up to 2402Mbps on 5GHz
- Up to 574Mbps on 2.4GHz
- 160MHz channel support
- OFDMA
- MU-MIMO
- 3 internal antennas
- 5 × Gigabit Ethernet ports
- PoE input
- PoE passthrough
- 802.3at/af PoE support
- Cudy Mesh support
- Multi-SSID support
- VLAN support
- WPA/WPA2/WPA3 security
- Captive Portal support
- Up to 60m² recommended coverage
- Recommended for up to 60 connected devices
- Cudy AP Controller support
- Wall-mounted design
- White finish
Specifications
| Specification | Details |
|---|---|
| Brand | Cudy |
| Model | AP3000 Wall 1.0 |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | Wi-Fi 6 |
| Wi-Fi Class | AX3000 |
| Bands | 2.4GHz / 5GHz |
| 5GHz Speed | Up to 2402Mbps |
| 2.4GHz Speed | Up to 574Mbps |
| Ethernet Ports | 5 × Gigabit |
| PoE | Yes |
| PoE Passthrough | Yes |
| Antennas | 3 × Internal |
| WPA3 | Yes |
| Mesh | Cudy Mesh |
| Recommended Coverage | Up to 60m² |
| Recommended Connected Devices | Up to 60 |
| Dimensions | 143 × 86 × 27.6mm |
| Weight | Approx. 299g |
| Maximum Power Consumption | 12W |
| Colour | White |
What's in the Box?
- Cudy AP3000 Wall Wi-Fi 6 Access Point
- Mounting kit
- Installation guide
