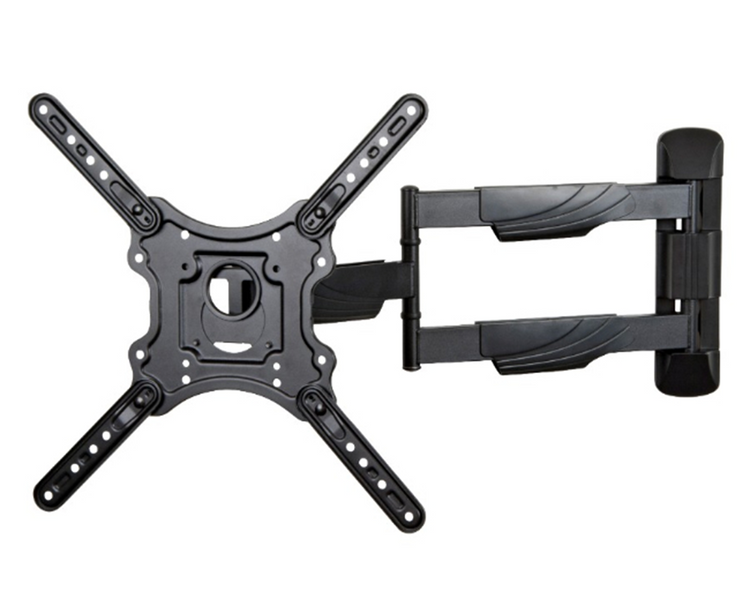

This 28088T Dual Arm Full Motion TV wall mount offers the maximum versatility for location of TV’s from 24”-55” and up to 35kgs. The dual arms allow the TV to be extended away from the wall to a total distance of 614mm. The bracket can tilt, swivel and can be located next to the wall or extended out away from the wall, ideal for TV’s located in corners, next to pillars or where the TV needs to be turned significantly for optimal viewing angle. It comes complete with cable tidy clips to help with cable routing and prevent unsightly cables hanging below your TV. The key hole VESA plate has been designed to allow TVs to be easily installed reducing the amount of heavy lifting required. Built-in level adjustable of +/-5° to ensure your TV is perfectly level. Maximum VESA 400×400.
24″-55″ LED, LCD Flat Panel TVs
- Snap-in design makes installation much easier
- Freely tilting allows easy TV angle adjustment
- Swivelling arm offer maximum viewing flexibility
- Built-in level adjustment ensures perfect positioning
- Neat and tidy cable management keeps cables organized and clutter-free
- Strength has been tested for a minimum of three times its stated load capacity
| Function: |
Full motion |
| Mounting Pattern: |
Standard VESA |
| Material: |
Steel, Plastic |
| Thickness: |
Wall panel 2.5mm,Panel 1.5mm,Pipe 1.2mm |
| Pipe Size: |
40x20x1.2mm |
| Surface Finish: |
Powder coating |
| Available Color: |
Black |
| Product Size: |
614x435x435mm |
| Suggested Screen Size: |
24″-55″ |
| Installation: |
Solid wall, Single Stud |
| Rated Load: |
35kgs/77lbs |
| Strength tested: |
3 times approved |
| Max.Hole Pattern: |
400x400mm |
| VESA: |
100×100; 100×150; 200×100; 200×200; 400×200; 300×300; 400×400; 400×300; 300×200 |
| Tilt: |
＋5°～-8° |
| Swivel: |
+90°~-90° |
| Level Adjustment: |
+5°~-5° |
| Profile: |
58-614mm |
