Description

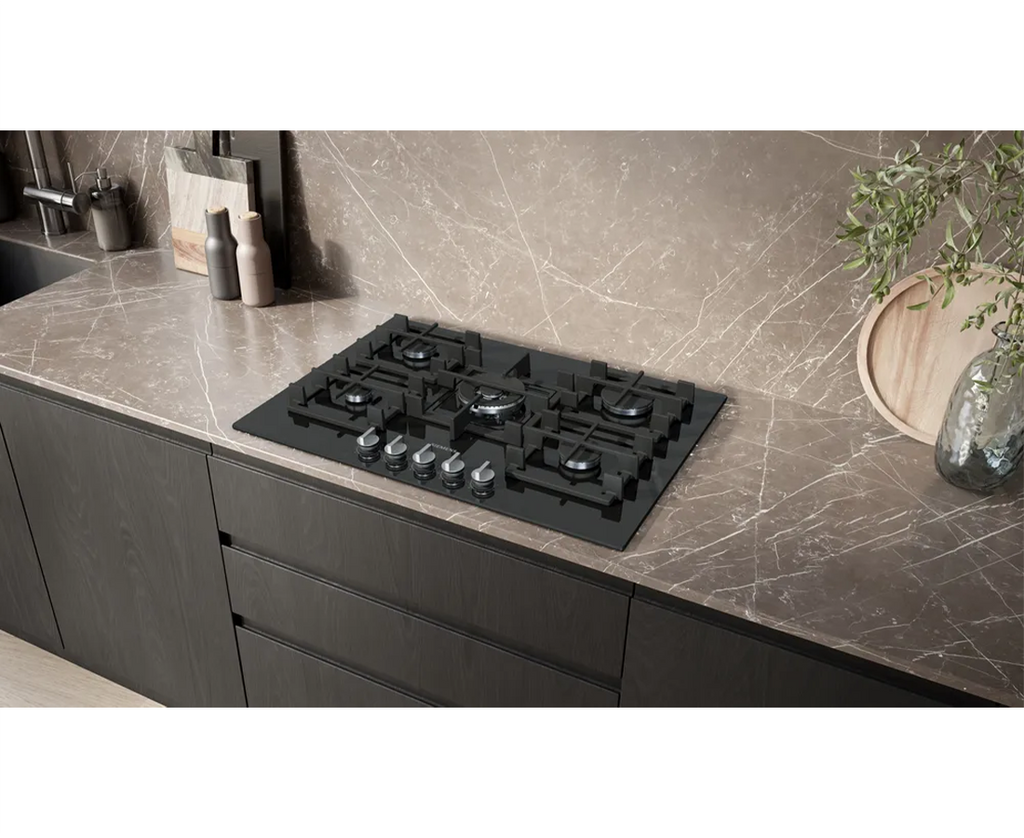

IQ500, Gas hob, 75 cm, Tempered glass, Black
Tempered glass gas hob with stepFlame Technology for precise flame control, with detachable dials and semi-continuous pan supports for an easy cleaning.
Technical Specification:
| Tempered Glass surface, black |

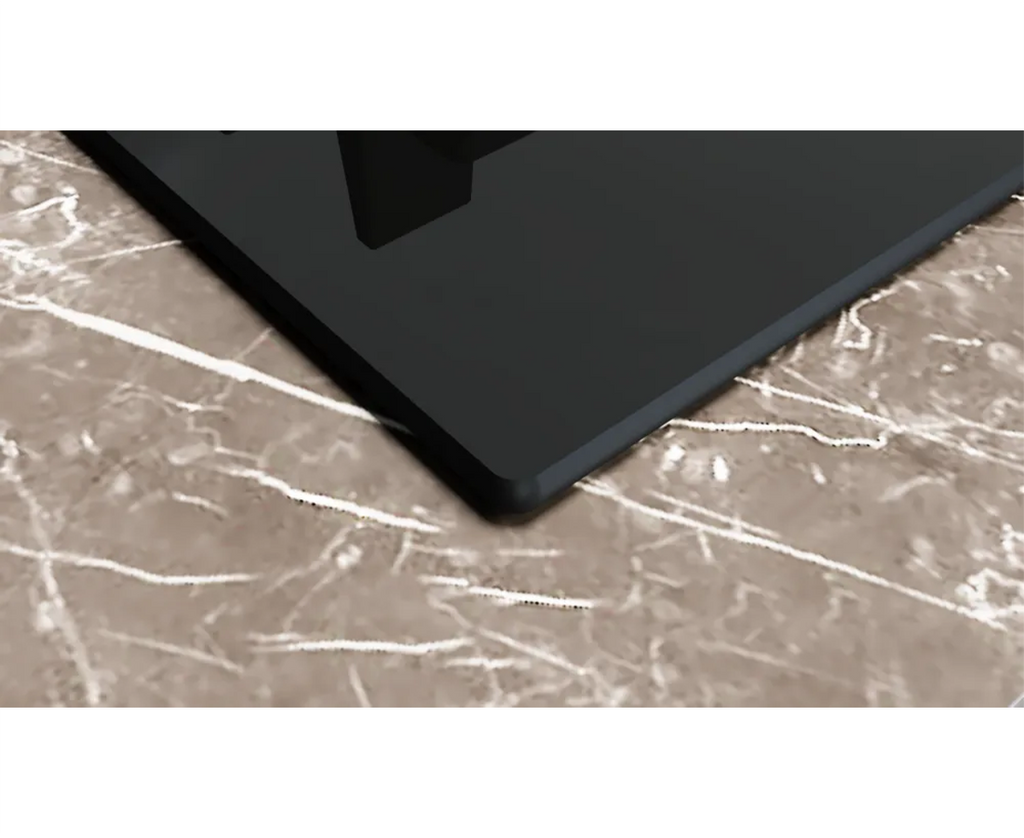

| frameless design: install the hob either flush or slightly raised on the worktop |

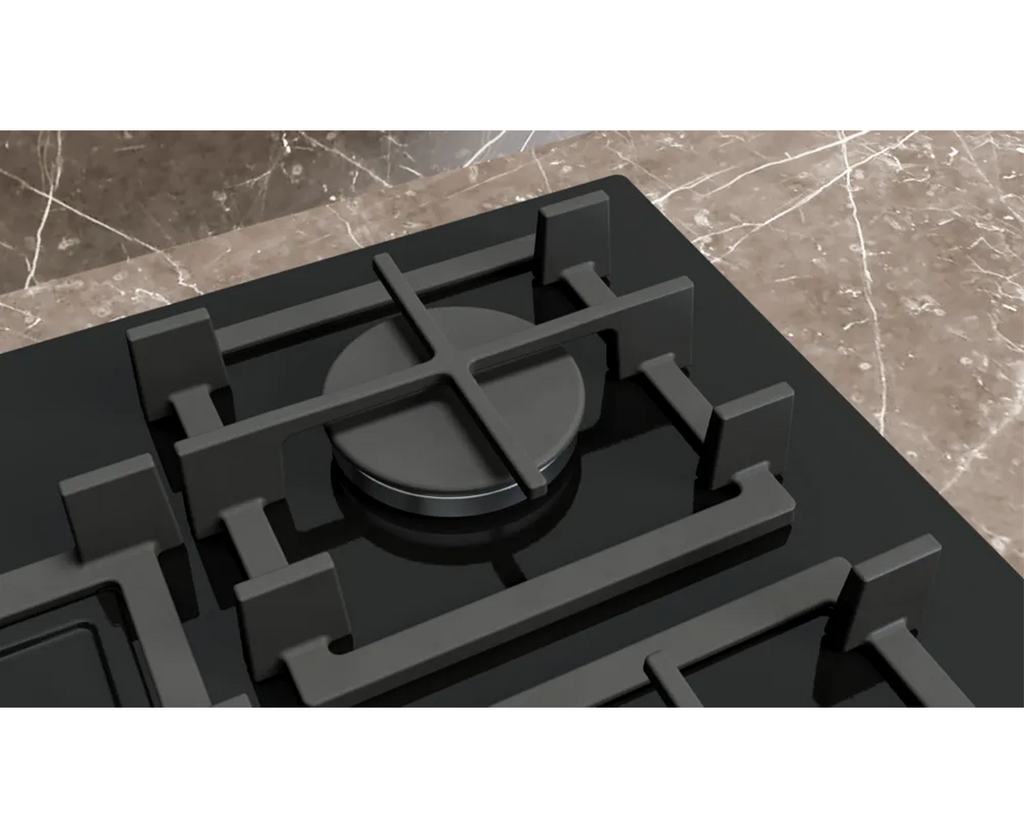

| Cast iron pan supports with rubber feet |
| full metal |
| Step Flame technology - 9 steps: precisely control and adjust the flame in nine defined levels. |

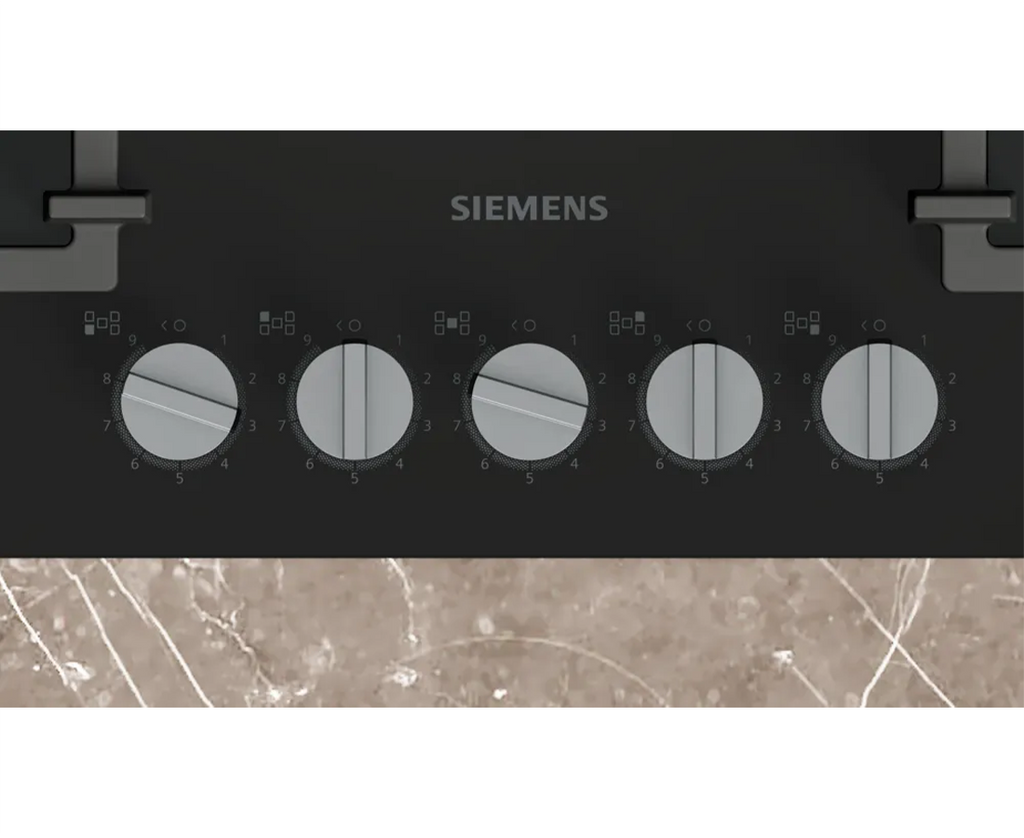

| Design co-ordinated control dials, front: easily access dials in front with strong grip for effortless turning. |
| Ignition via control dials: just push and turn the dials to ignite the flame. |

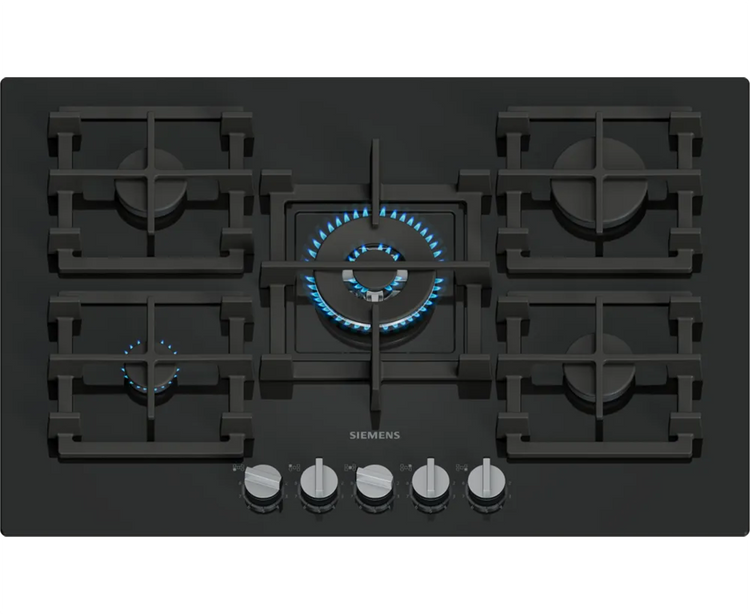

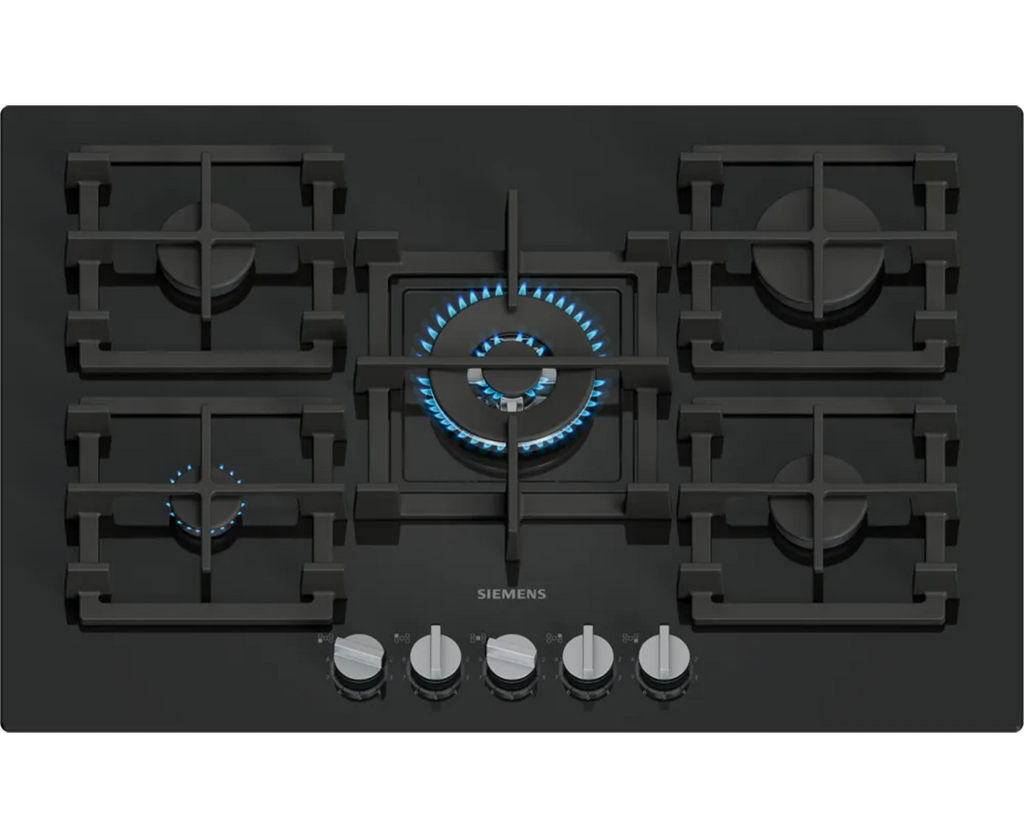

| 5 burner gas hob including |
| Left front: Economy burner up to 1 KW (depending on gas type) |
| Left rear: Standard burner up to 1.75 KW (depending on gas type) |
| Center front: wok burner up to 4 KW (depending on gas type) |
| Right rear: High-speed burner up to 3 KW (depending on gas type) |
| Right front: Standard burner up to 1.75 KW (depending on gas type) |

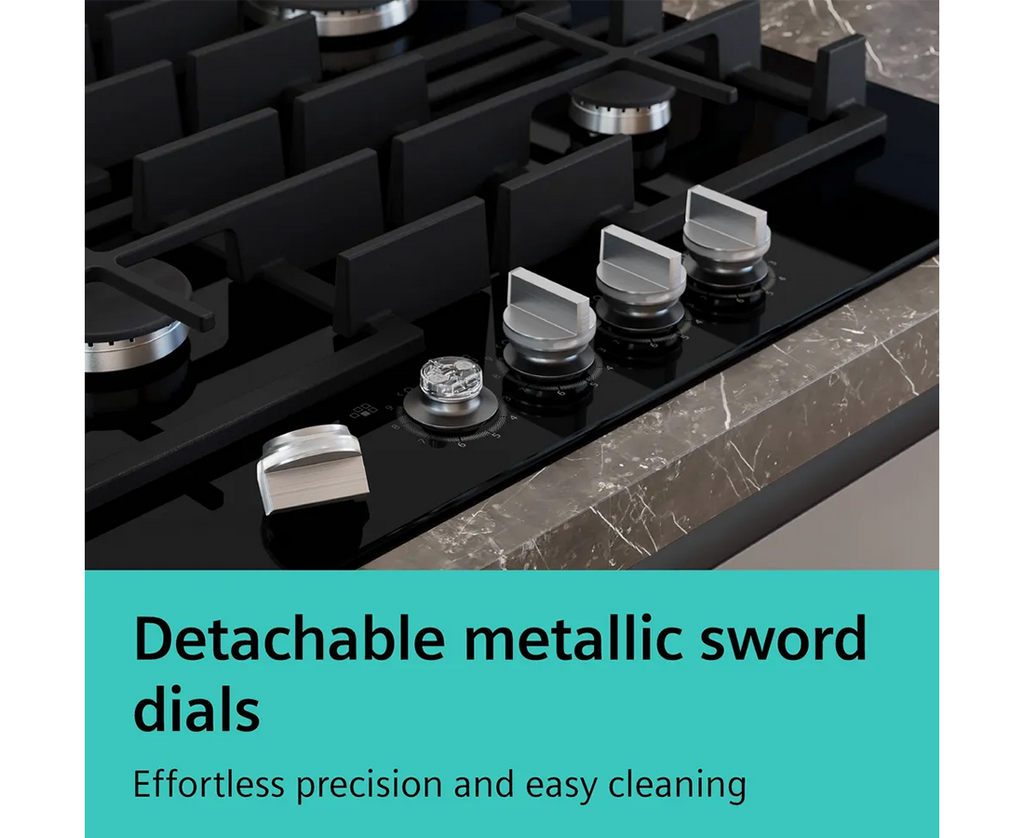

| Removable control dials for easy cleaning between dials. |
| Dishwasher suitable pan supports for easy cleaning. |
| Cast iron pan supports with rubber feet: little weight and compact form, yet high stability due to continuous surface. |

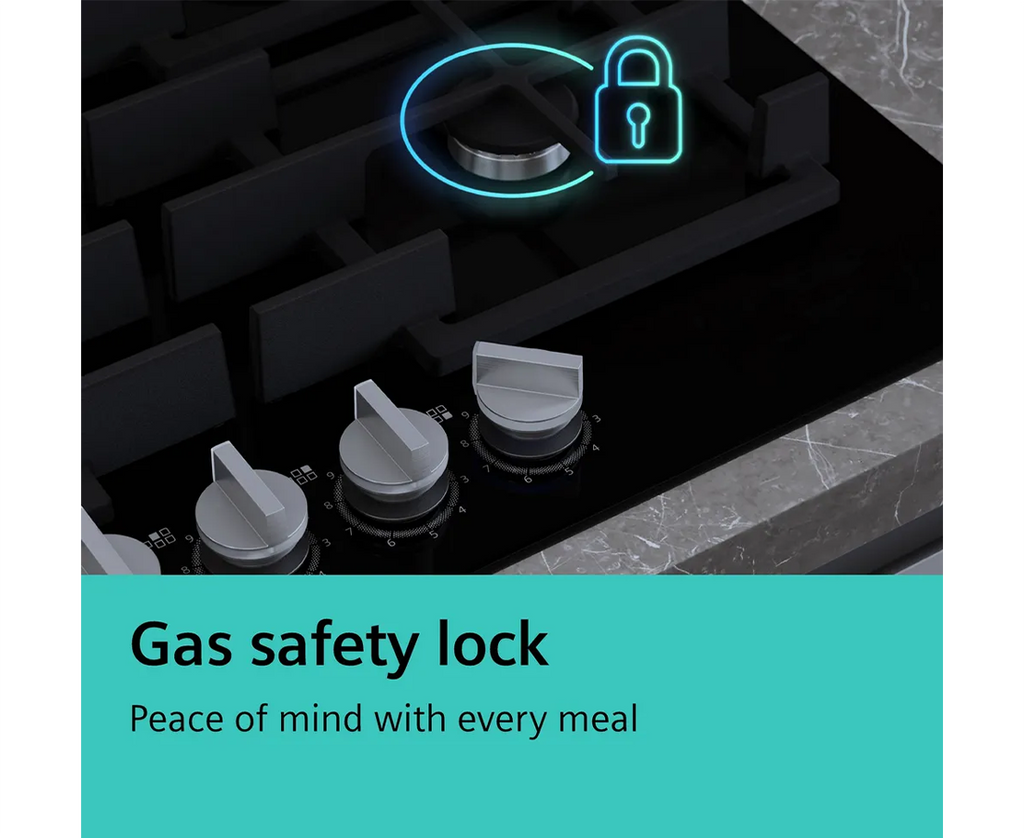

| Flame failure safety device: prevents unwanted gas flow when flame goes out. |
| Usable for: Nat gas L/LL G25/20mbar(DE) NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar |
| Factory set for connection to mains gas |
| Nozzle set for LPG jets (28-30/37mbar) included. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service. |

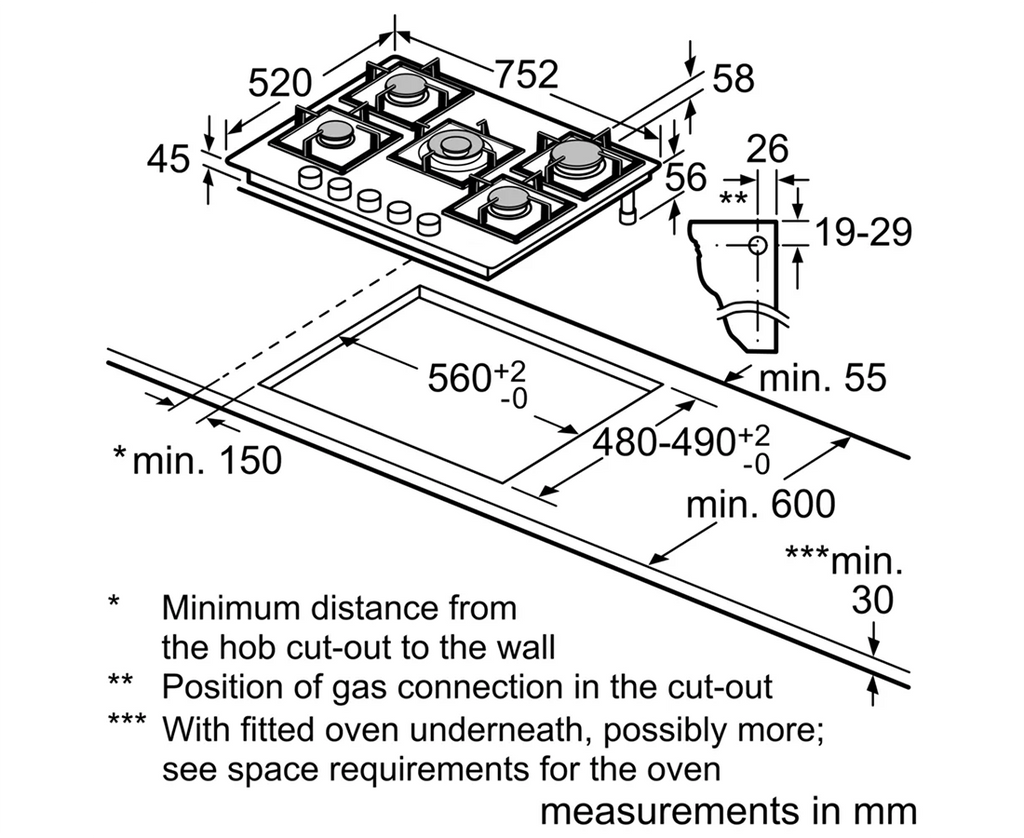

| Dimensions of the product (HxWxD mm): 54 x 752 x 520 |
| Required niche size for installation (HxWxD mm) : 45 x 560 x (480 - 490) |
| Min. worktop thickness: 20 mm |
| If installed flush, minimum worktop thickness is 30mm. |
| Power cord: 1 m |
| Connected load: 11.5 KW |
