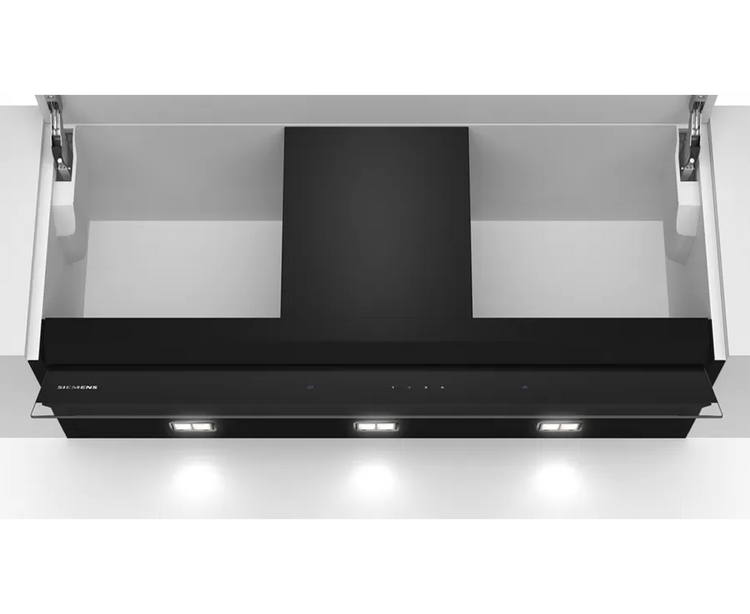

IQ500, Integrated Design Hood, 90 cm, Clear glass black printed
Seamlessly integrated design hood for maximum use of storage space in your cupboards.
- Intensive setting revert - Peak performance when steam escapes, and an automatic revert after a few minutes.
- Storage space - Store up to 10 kg on each side of the hood.
- touchControl Plus - Easy control of the program settings and light functions.
- LED lights: for optimal visibility and ambience while cooking.
Technical Specification
| 90 cm wide |
| Cupboard 90 cm |
| Suitable for ducted and re-circulating operation |
| For recirculated extraction various recirculation kits are available as optional accessories. |
| Flush-fitted installation for a seamless integration in wall cupboards. |
| Space efficient compact design for extra storage possibilities on the hood, up to max. 10 kg storage weight per side. |
| Glass panel with touch control for an easy operation and enhanced vapor capture. |
| Extraction and lighting are automatically turned on and off by opening and closing the glass panel. |
| Lighting can also be turned on and off when the glass panel is closed by quick hand touch on control panel. |
| Electronic control via touchControl |
| 3 x power levels plus intensive setting |
| SoftLight with dimmer function |
| 3 x 2 W LED lights |
| Colour Temperature: 3500 K |
| Light Intensity: 517 lux |
| Automatic intensive revert |
| Automatic intensive revert (6mins) |
| Steel filter cover |
| 2 x metal grease filter cassettes |
| Easy to clean smooth surfaces and materials. |
Extraction rate according to EN 61591 ø 15 cm:
max. Normal use460m³/h
Intensive749 m³/h |
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use:63dB(A) re 1 pW
Intensive:73 dB(A) re 1 pW |
| Noise max. Normal Level: 63 dB* |
With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
Extraction rate in recirculation mode: Max. normal use:451m³/h
Intensive:652m³/h
Noise level in recirculation mode: Max. normal use:67dB(A) re 1 pW
Intensive:74 dB(A) re 1 pW |
| Installation system: IDH comfort installation |
| Suitable for installation in bottomless wall cupboards. |
| Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm. |
| Includes mats for hood storage areas, protectioning against scratches and to help prevent items moving in this space. |
| For installation in higher wall cupboards chimney extensions are available as optional accessories. |
| Chimney extensions are compatible with the available recirculation kits. |
| Dimensions (HxWxD): 340 x 897 x 298 mm |
| Built-in dimensions (HxWxD): 340 x 860 x 300 mm |
| Diameter pipe Ø 150 mm (Ø 120 mm enclosed) |
| Back-pressure flap: Yes |
| Electrical cable length 1.3 m |
| Please reference the built-in dimensions provided in the installation drawing |
| Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D) |
| Average Energy Consumption: 64.7 kWh/year* |
| Blower Efficiency Class: B* |
| Lighting Efficiency Class: A* |
| Grease Filtering Efficiency Class: B* |
| Power rating: 259 W |
