Description

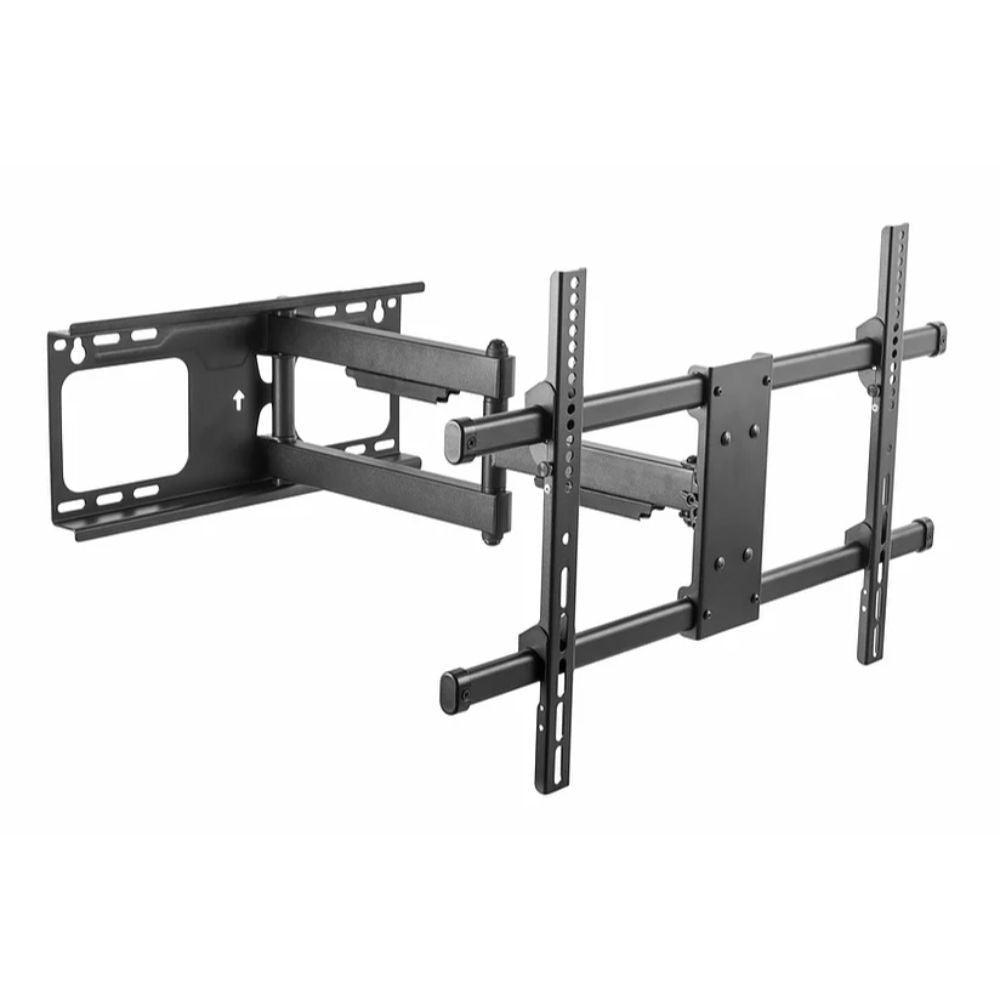

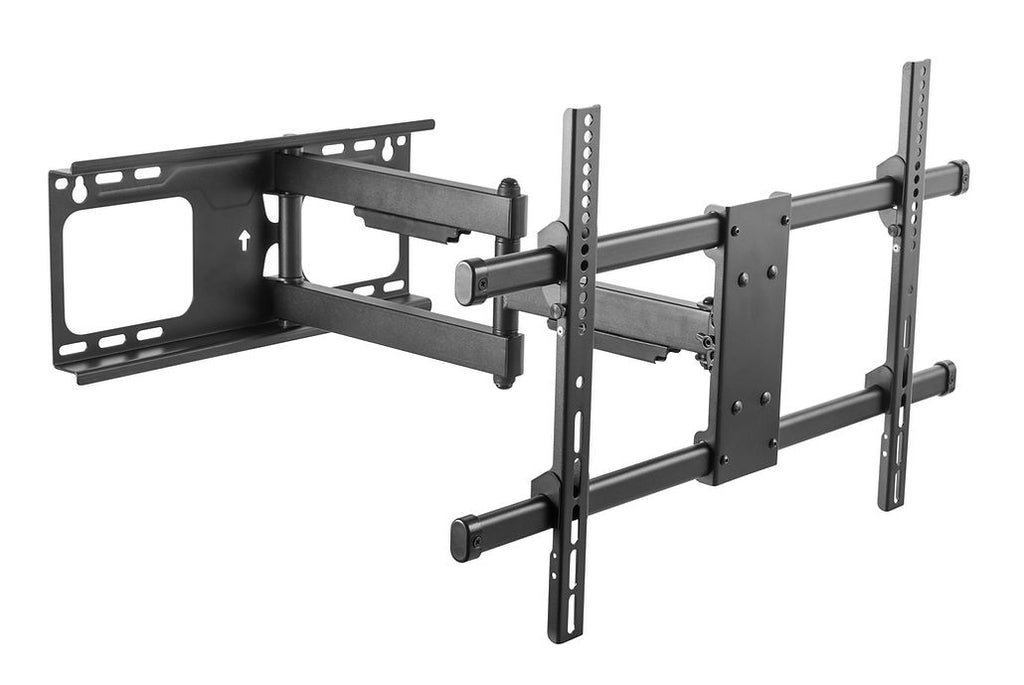

Enjoy greater flexibility when positioning your television with the iTech 37”–80” Full Motion Double Arm TV Wall Mount. Built from strong high-gauge steel, this heavy-duty bracket supports compatible TVs weighing up to 60kg while providing extensive tilt, swivel and extension adjustment.
The double-arm full-motion design allows the television to extend up to 61.5cm from the wall, making it easy to adjust the screen for a comfortable viewing angle from different positions around the room.
Full Motion Adjustment
Tilt, swivel and extend your television to achieve the ideal viewing position. With up to 180° of swivel and a tilt range from +5° to -15°, the bracket provides excellent flexibility for different room layouts.
Extends Up to 61.5cm

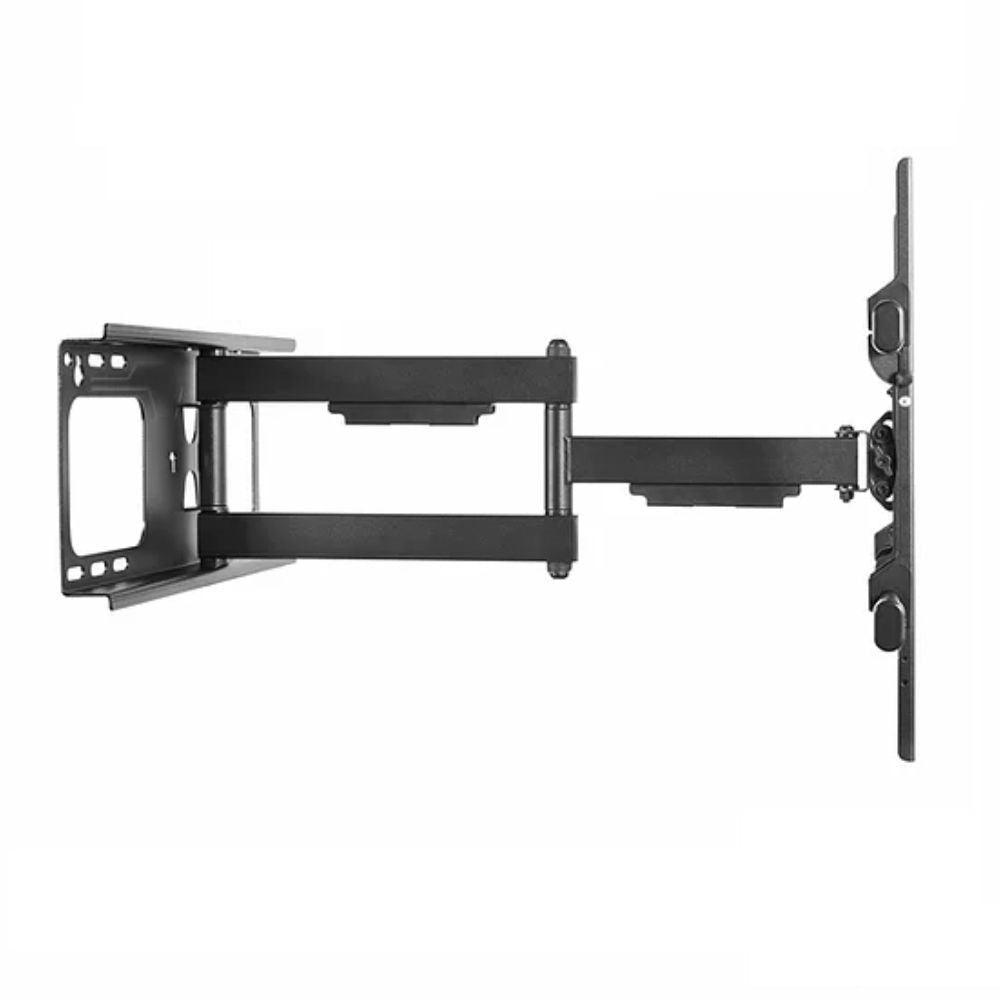

The articulated double-arm design allows the television to extend up to 615mm from the wall when required, while retracting to a profile of approximately 69mm for a neater appearance.
Supports TVs Up to 60kg
Strong high-gauge steel construction provides secure support for compatible televisions weighing up to 60kg.
Suitable for 37”–80” TVs
Designed for a broad range of televisions from 37” to 80”, the bracket supports VESA mounting patterns up to 600 × 400mm.
Post-Installation Level Adjustment
Once the television is mounted, the screen can be adjusted by up to 3° clockwise or anti-clockwise to help achieve a perfectly level installation.
Integrated Cable Management
Built-in cable management helps keep power, HDMI and other cables organised for a cleaner and more streamlined installation.
Key Features
- Full-motion TV wall mount
- Suitable for 37”–80” TVs
- Heavy-duty double-arm design
- Supports TVs up to 60kg
- Strong high-gauge steel construction
- Up to 180° swivel
- +5° to -15° tilt
- ±3° screen-level adjustment
- Extends up to 615mm from wall
- Retracts to approximately 69mm
- Maximum VESA 600 × 400mm
- Integrated cable management
- Installation fittings included
- Suitable for solid and double-stud wall installation
- Black finish
Specifications
| Specification | Details |
|---|---|
| Brand | iTech |
| Model | PTRB77 |
| Product Type | Full Motion TV Wall Mount |
| TV Size | 37”–80” |
| Maximum TV Weight | 60kg |
| Tilt | +5° to -15° |
| Swivel | Up to 180° |
| Level Adjustment | ±3° |
| Wall Profile | 69–615mm |
| VESA | 200×200, 400×200, 300×300, 400×400, 600×400mm |
| Material | Steel |
| Cable Management | Yes |
| Product Weight | Approx. 7.14kg |
| Colour | Black |
What's in the Box?
- iTech PTRB77 Full Motion TV Wall Mount
- Mounting fittings
- Installation instructions
