Description

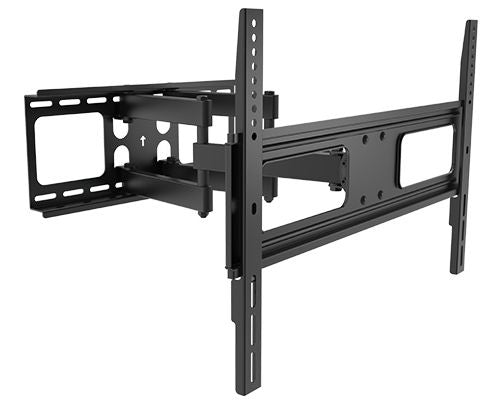

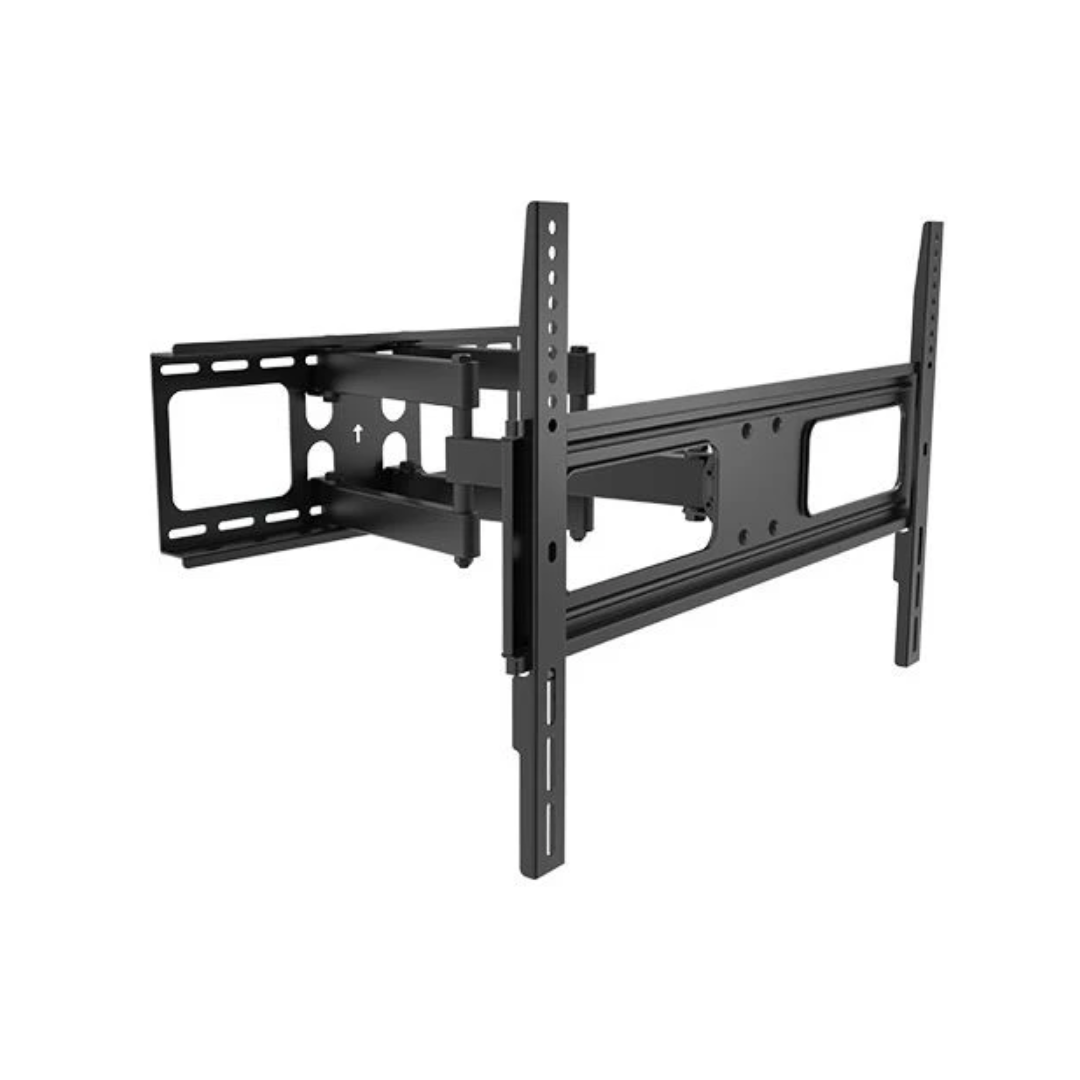

Position your TV exactly where you want it with the Revez 37”–70” Tilt & Swivel TV Wall Mount. Designed for larger LCD, LED and plasma TVs, the TS70C V2 combines a strong 50kg maximum load capacity with a flexible cantilever design that lets you extend, tilt and swivel your television for a better viewing angle.
Supporting VESA mounting patterns up to 600 × 400mm, it's suitable for a wide range of televisions from 37" to 70", making it a versatile choice for living rooms, bedrooms and entertainment spaces.
Tilt & Swivel Adjustment
Unlike a basic fixed wall bracket, the TS70C V2 allows you to reposition the television after installation.
It provides up to 60° swivel in either direction and tilt adjustment from -20° to +10°, making it easier to reduce glare or angle the screen towards different seating positions.
Extends Up to 510mm
The cantilever mechanism allows the TV to sit approximately 64mm from the wall when retracted and extend out to 510mm when required.
Supports TVs Up to 50kg
With a maximum weight capacity of 50kg, the bracket is designed to securely support a broad range of larger televisions, provided the TV's weight and VESA mounting pattern fall within the specified limits.
Wide VESA Compatibility
Compatible mounting patterns include:
200 × 200 · 400 × 200 · 300 × 300 · 400 × 400 · 600 × 400mm
Fine Level Adjustment
Once installed, ±3° level adjustment lets you make small corrections to ensure the television sits straight on the wall.
Key Features
- Suitable for 37"–70" TVs
- Full-motion cantilever design
- Tilt and swivel adjustment
- Maximum load: 50kg
- Maximum VESA: 600 × 400mm
- Swivel: -60° to +60°
- Tilt: -20° to +10°
- Level adjustment: -3° to +3°
- Extends from approximately 64mm to 510mm
- Suitable for LED, LCD and plasma TVs
- Installation fitting kit included
| Specification | Details |
|---|---|
| Brand | Revez |
| Model | TS70C V2 |
| Type | Full-Motion / Cantilever TV Wall Mount |
| TV Size | 37"–70" |
| Maximum Weight | 50kg |
| Maximum VESA | 600 × 400mm |
| Tilt | -20° to +10° |
| Swivel | -60° to +60° |
| Level Adjustment | -3° to +3° |
| Minimum Profile | 64mm |
| Maximum Extension | 510mm |
What's in the Box?
- Revez TS70C V2 TV Wall Mount
- Fitting kit
- Installation components/documentation
