Description

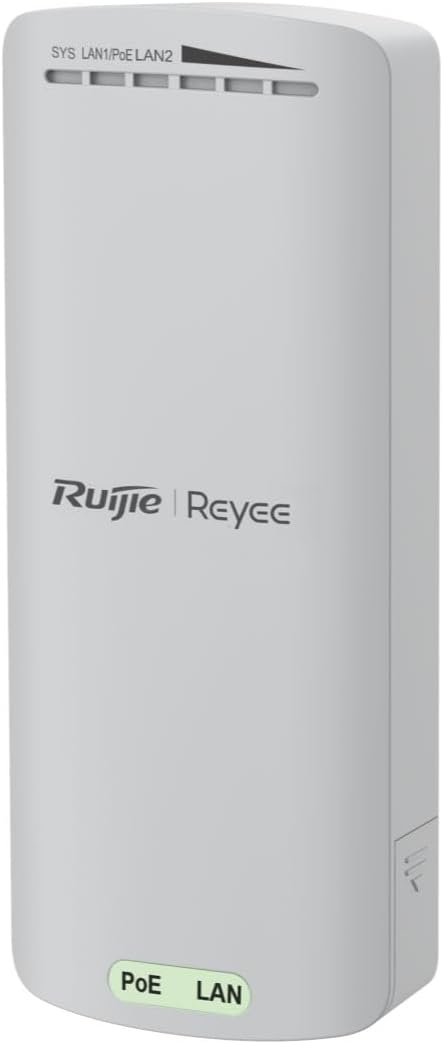

Extend your network connection between buildings or outdoor locations with the Ruijie Reyee RG-EST100-E Wireless Bridge Kit. Designed for short-distance point-to-point networking, this pre-configured wireless bridge can transmit network data across distances of up to 500 metres, providing a practical alternative to running physical network cabling between locations.
Operating on the 2.4GHz band with dual-stream 2×2 MIMO, the RG-EST100-E is particularly suited to CCTV installations, garages, outbuildings, offices and other locations where a reliable network connection is required away from the main building.
Up to 500m Wireless Transmission
The RG-EST100-E is designed for point-to-point transmission over distances of up to 500 metres.
Ruijie specifies bridge performance of approximately 60Mbps at 100m and 30Mbps at 500m using a 20MHz channel.
Ideal for CCTV Systems
This model is specifically designed with CCTV installations in mind.
Ruijie states that it can support up to 10 × 3MP cameras at 100m, or up to 5 × 3MP cameras at 500m, depending on installation conditions and bandwidth requirements.
Pre-Configured for Easier Installation
The bridge pair comes pre-configured, reducing the amount of networking setup required during installation.
That makes it considerably easier to establish a point-to-point wireless link without complex configuration or alignment.
Built for Outdoor Installation
With an IP55 weather-resistant enclosure and an operating temperature range from -30°C to +60°C, the RG-EST100-E is designed to operate reliably in outdoor environments.
Ruijie Cloud Management
Integration with Ruijie Cloud provides remote monitoring and network statistics, making it easier to manage and troubleshoot installations without always needing to be physically on site.
Key Features
- 500m point-to-point wireless bridge

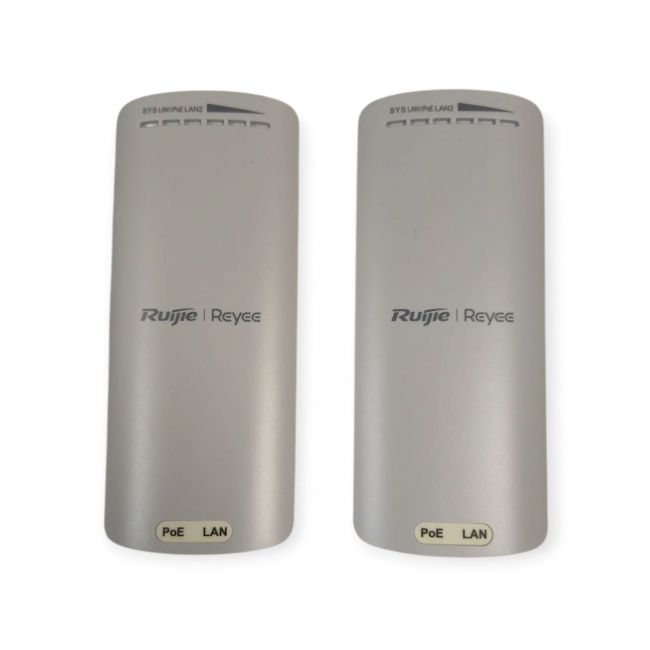

- Supplied as a pair
- 2.4GHz wireless connection
- Dual-stream 2×2 MIMO
- 20/40MHz channel width
- Up to 60Mbps bridge performance at 100m
- Up to 30Mbps bridge performance at 500m
- Designed for CCTV and building-to-building networking
- Supports up to 5 × 3MP cameras at 500m
- Pre-configured for easier installation
- PoE powered
- IP55 weather resistance
- Operating temperature: -30°C to +60°C
- Ruijie Cloud monitoring
- Reyee App remote restart support
- 3-year manufacturer's warranty
Specifications
| Specification | Details |
|---|---|
| Brand | Ruijie Reyee |
| Model | RG-EST100-E |
| Product Type | Wireless Bridge |
| Configuration | Point-to-Point |
| Maximum Distance | 500m |
| Wireless Band | 2.4GHz |
| Radio | 2×2 MIMO |
| Spatial Streams | 2 |
| Channel Width | 20 / 40MHz |
| Performance @ 100m | Up to 60Mbps |
| Performance @ 500m | Up to 30Mbps |
| PoE | Yes |
| Weather Resistance | IP55 |
| Operating Temperature | -30°C to +60°C |
| Dimensions | 68.7 × 42 × 165.5mm |
| Cloud Management | Ruijie Cloud |
| Warranty | 3 Years |
