Description
Series 2, Wall-mounted cooker hood, 60 cm, Clear glass black printed
Technical Specification:
| Inclined glass common design |
| wall-mounted |
| Black glass |
| Suitable for ducted or recirculating operation |
| For recirculated extraction recirculating kit (accessory) needed |
| Capacitor motor |

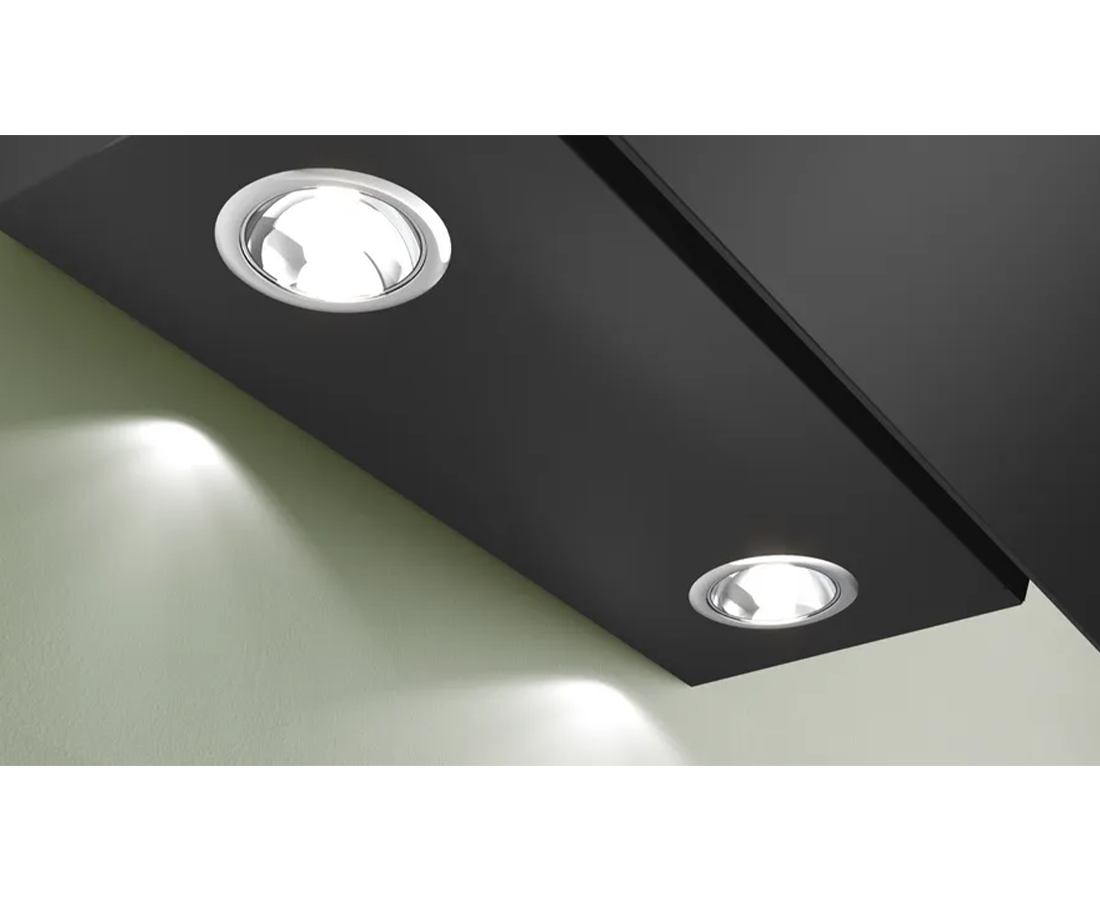

| 2 x LED lights |
| Colour Temperature: 4000 K |
| Light Intensity: 127 lux |
| 1 metal grease filter(s). |

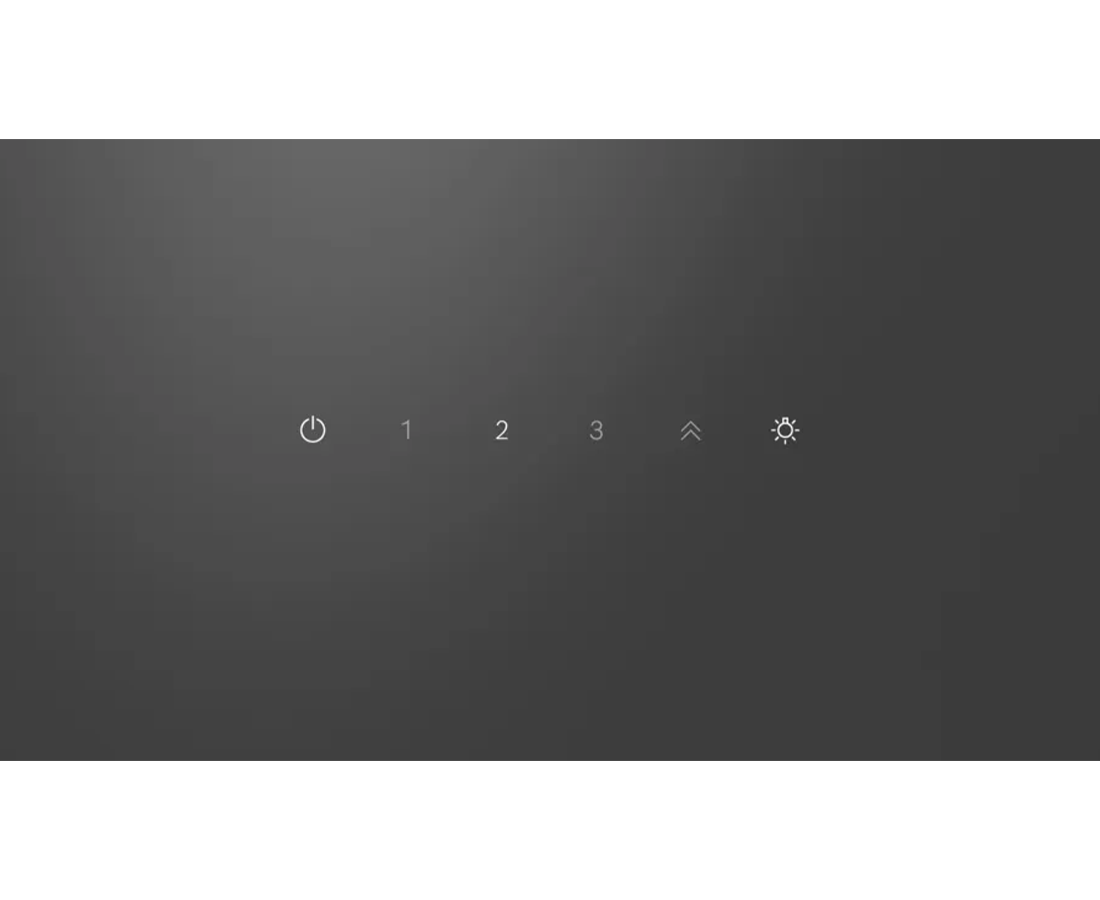

| Electronic control via TouchControl, backlighted |
| 3 power levels & intensive setting |
| Automatic reset from intensive to normal setting after 5 min. |
| Saturation indicator for metal and charcoal filter |

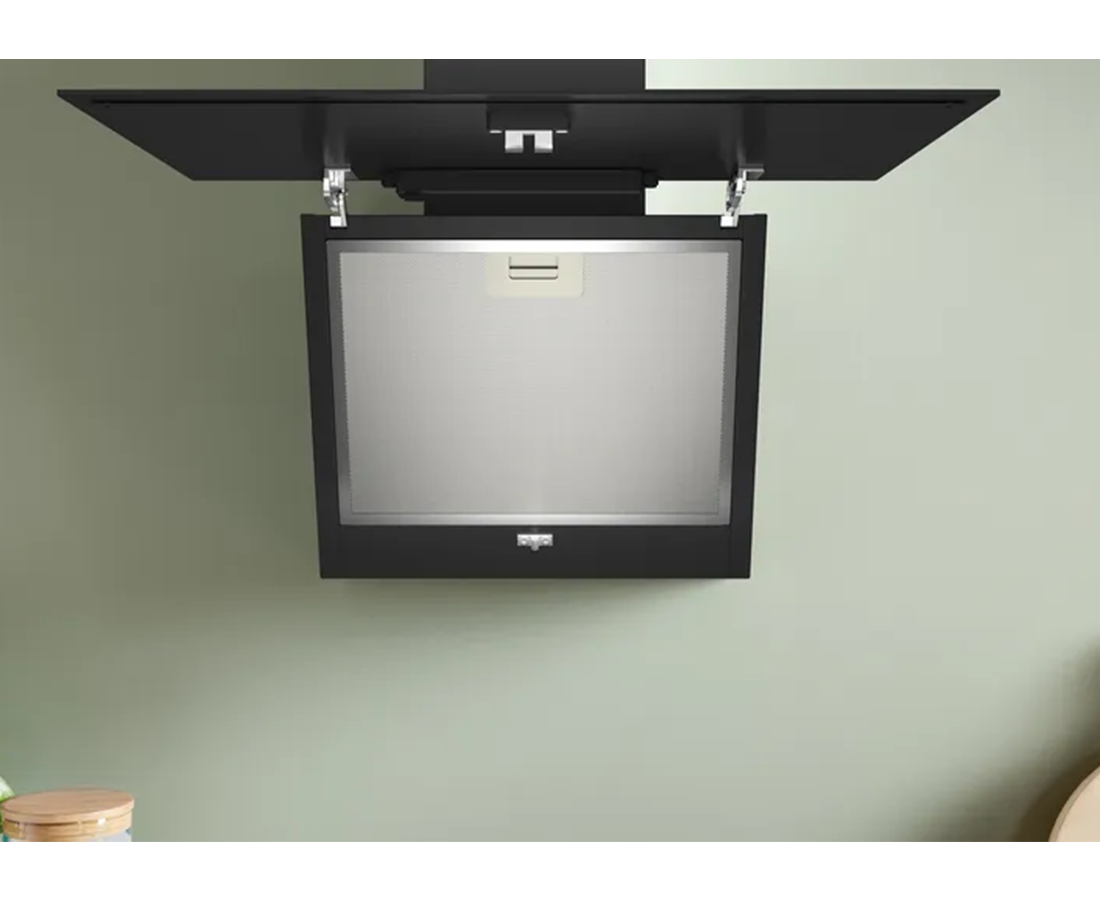

| Large opening angle of the glass plate with locking function for an easy filter accessibility and easy cleaning. |
| Easy to clean smooth surfaces and materials. |
| Removable metal grease filters dishwasher-safe |
| According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 220 m3/h; noise level 46 dB (A) re1pW Speed 2: extraction rate 315 m3/h; noise level 53 dB (A) re1pW Speed 3: extraction rate 430 m3/h; noise level 60 dB (A) re1pW Intensive 1: extraction rate 550 m3/h; noise level 65 dB (A) re1pW |
| According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 215 m3/h; noise level 51 dB (A) re1pW Speed 2: extraction rate 300 m3/h; noise level 61 dB (A) re1pW) Speed 3: extraction rate 445 m3/h ; noise level 69 dB (A) re1pW) Intensive Speed 1: extraction rate550 m3/h; noise level 72 dB (A) re1pW) |
| Consumption data: |
| Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D) |
| Average Energy Consumption: 43.8 kWh/year* |
| Blower Efficiency Class: A* |
| Lighting Efficiency Class: A* |
| Grease Filtering Efficiency Class: E* |
| Power rating: 223 W |
| Voltage: Nominal voltage: 220 - 240 V |
| Dimensions exhaust air (HxWxD): 690-900 x 590 x 325 mm |
| Dimensions recirculating (HxWxD): 720-975 x 590 x 325 mm |
| Diameter pipe Ø 150 mm (Ø 150 mm enclosed) |
| Electrical cable length 1.5 m |
| Back-pressure flap: Yes |
