Description
Series 2, Wall-mounted cooker hood, 80 cm, Clear glass black printed
Technical Specification:
Inclined glass common design |
wall-mounted |
Black glass |
Suitable for ducted or recirculating operation |
For recirculated extraction recirculating kit (accessory) needed |
Capacitor motor |

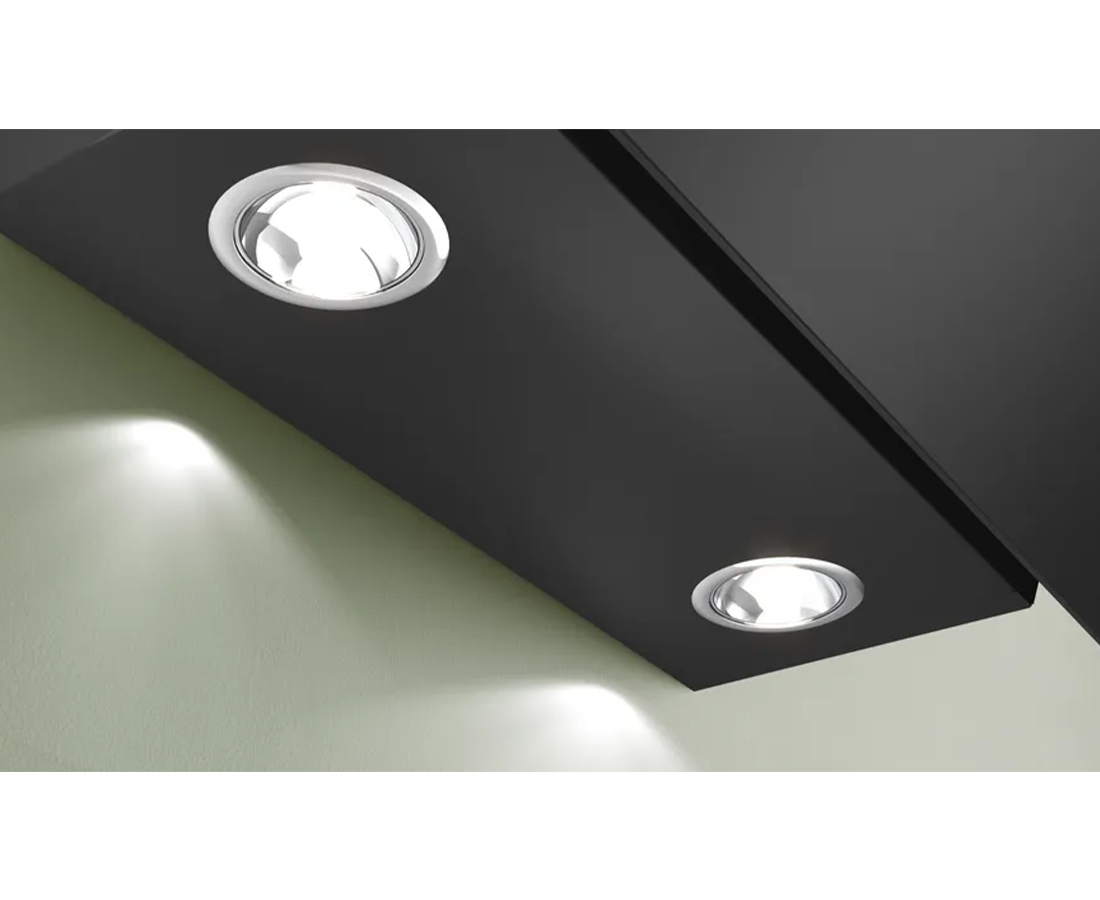

2 x LED lights |
Colour Temperature: 4000 K |
Light Intensity: 127 lux |
1 metal grease filter(s). |

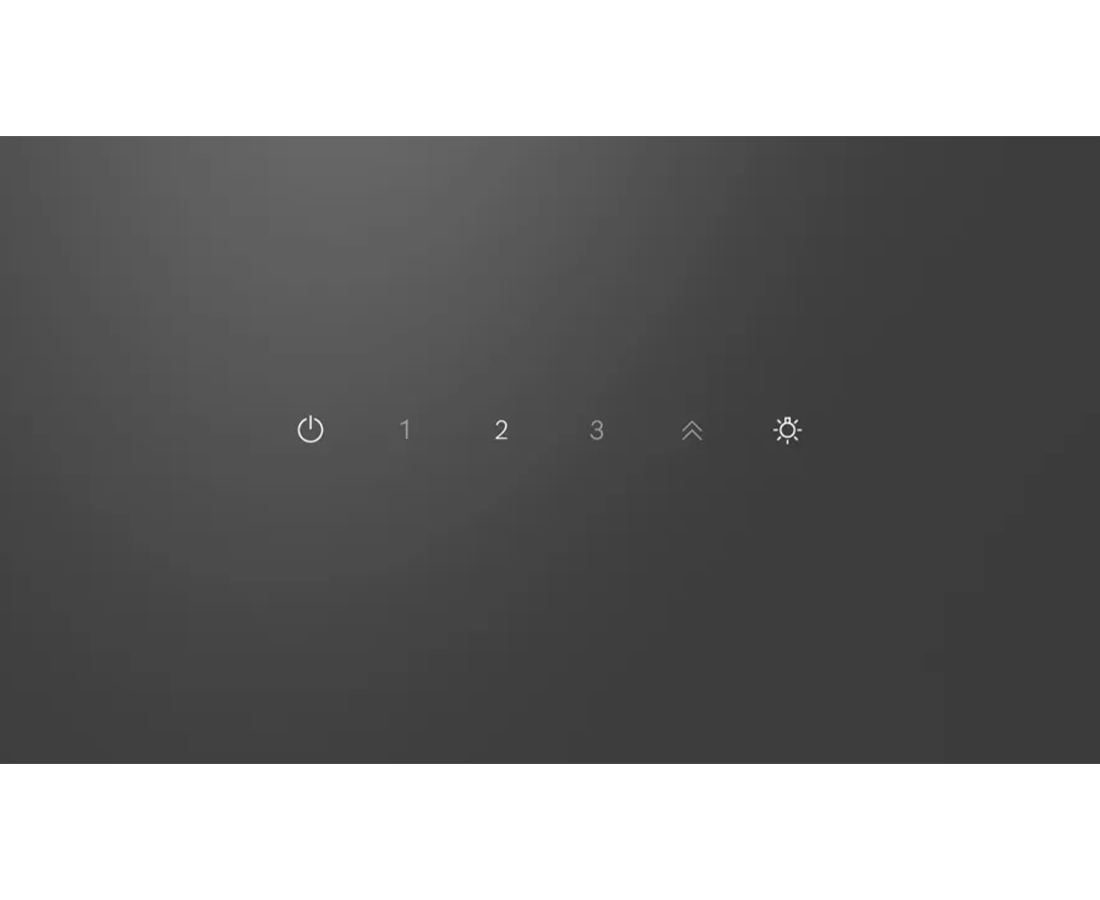

Electronic control via TouchControl, backlighted |
3 power levels & intensive setting |
Automatic reset from intensive to normal setting after 5 min. |
Saturation indicator for metal and charcoal filter |

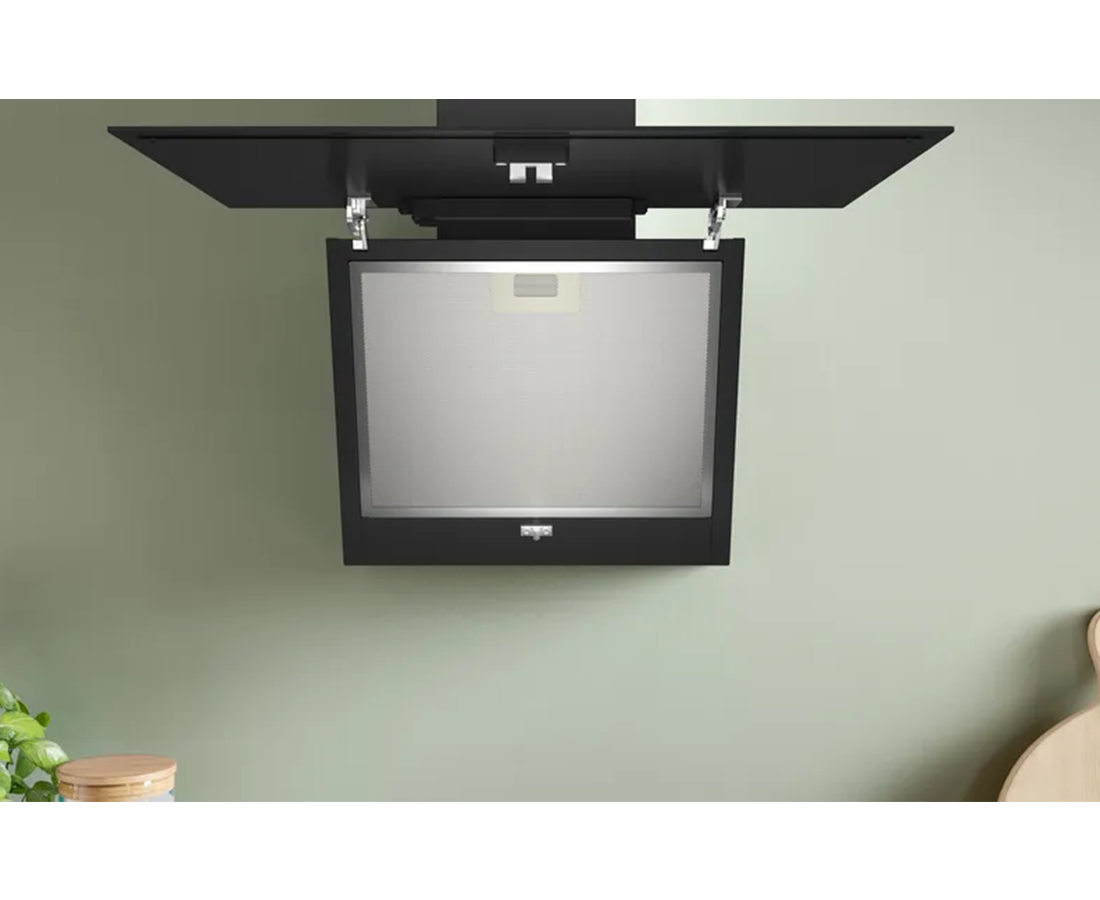

Large opening angle of the glass plate with locking function for an easy filter accessibility and easy cleaning. |
Easy to clean smooth surfaces and materials. |
Removable metal grease filters dishwasher-safe |
According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 220 m3/h; noise level 46 dB (A) re1pW Speed 2: extraction rate 315 m3/h; noise level 53 dB (A) re1pW Speed 3: extraction rate 430 m3/h; noise level 60 dB (A) re1pW Intensive 1: extraction rate 550 m3/h; noise level 65 dB (A) re1pW |
According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 215 m3/h; noise level 51 dB (A) re1pW Speed 2: extraction rate 300 m3/h; noise level 61 dB (A) re1pW) Speed 3: extraction rate 445 m3/h ; noise level 69 dB (A) re1pW) Intensive Speed 1: extraction rate550 m3/h; noise level 72 dB (A) re1pW) |
Consumption data: |
Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D) |
Average Energy Consumption: 43.8 kWh/year* |
Blower Efficiency Class: A* |
Lighting Efficiency Class: A* |
Grease Filtering Efficiency Class: E* |
Power rating: 223 W |
Voltage: Nominal voltage: 220 - 240 V |
Dimensions exhaust air (HxWxD): 690-900 x 790 x 325 mm |
Dimensions recirculating (HxWxD): 720-975 x 790 x 325 mm |
Diameter pipe Ø 150 mm (Ø 150 mm enclosed) |
Electrical cable length 1.5 m |
Back-pressure flap: Yes |
