Description

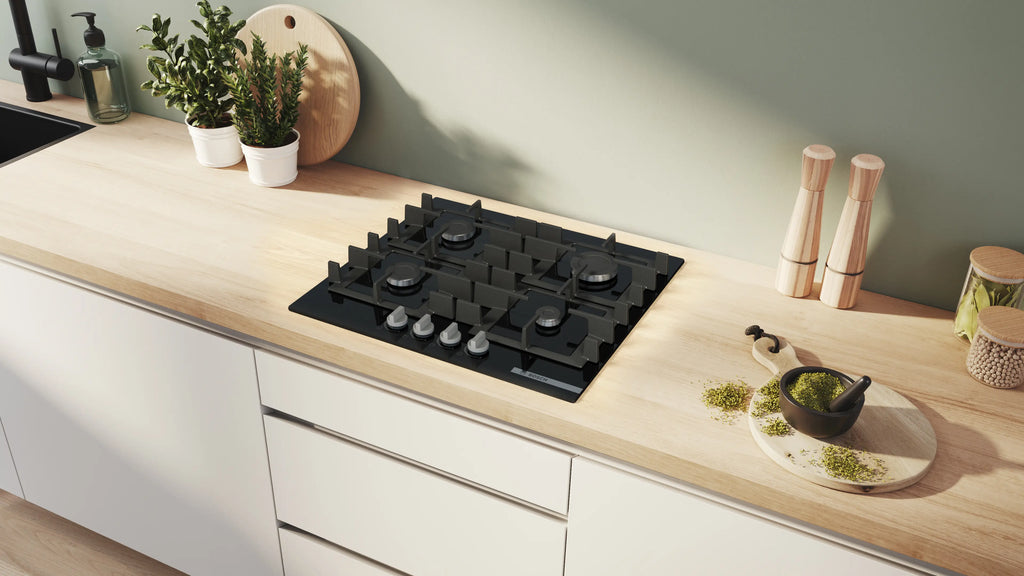

Series 4, Gas hob, 60 cm, Tempered glass, Black
The gas hob with dishwasher suitable cast iron pan supports,Ergonomic sword dials, and a Main Switch for precise control.

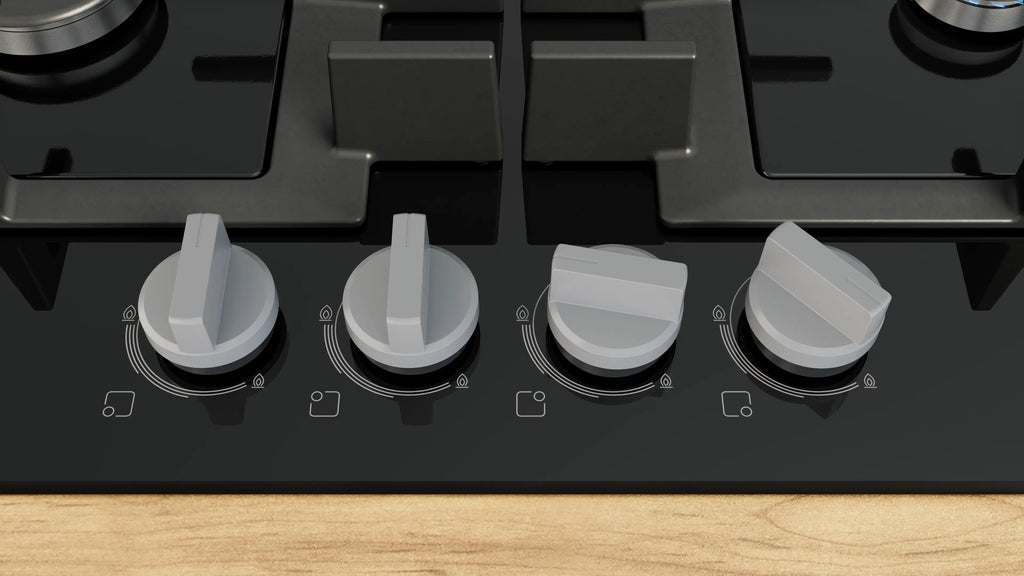

- Ergonomic sword dials: with raised center for precise adjustments.

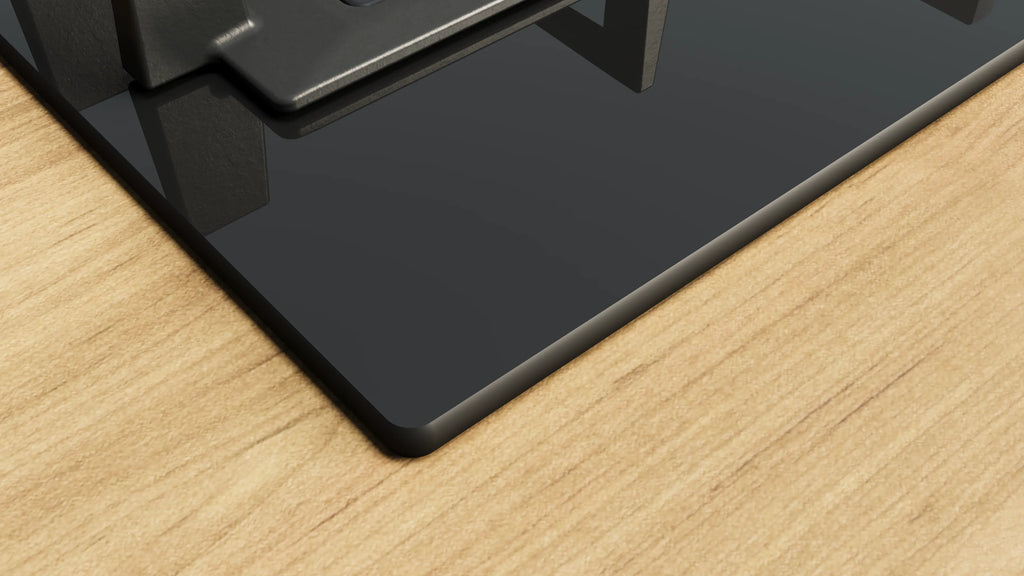

- Tempered Glass: for strength and aesthetic.
- Dishwasher-suitable pan supports: Easy, scrub-free cleaning.

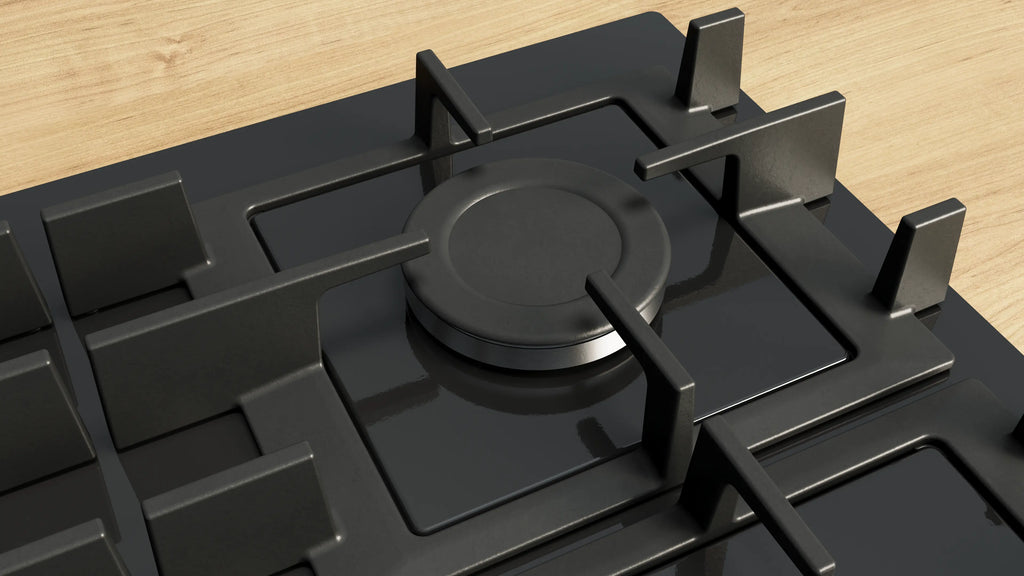

- Semi-continuous pan supports: smaller for easy cleaning, yet providing a seamless cooking surface.
- Safety gas cut-off: ensures safety by instantly cutting off gas supply if the flame goes out.
Additional Information:
Design
| Tempered glass surface, Black |
| Cast iron pan supports with rubber feet |
Usage convenience
| Design co-ordinated control dials, front: easily access dials in front with strong grip for effortless turning. |
| Ignition via control dials: just push and turn the dials to ignite the flame. |

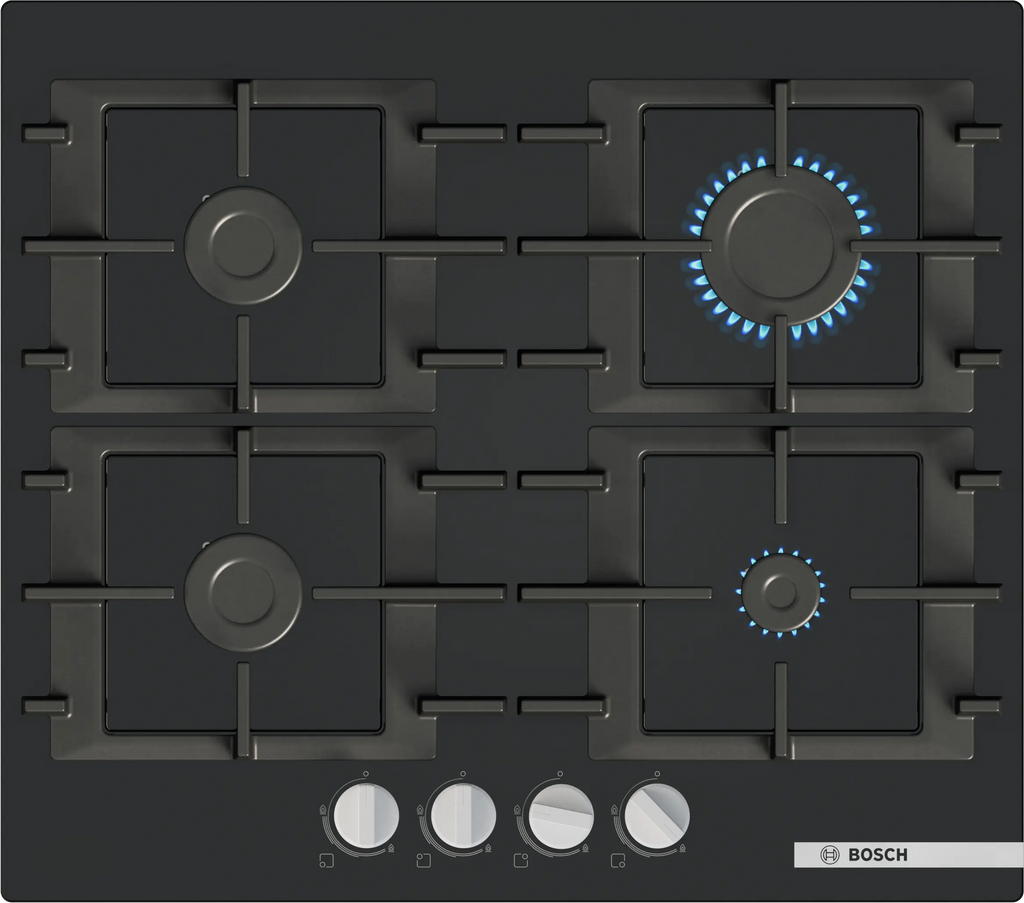

Burners and power
| 4 gas burners |
| Left front: Standard burner up to 1.75 KW (depending on gas type) |
| Left rear: Standard burner up to 1.75 KW (depending on gas type) |
| Right rear: High-speed burner up to 3 KW (depending on gas type) |
| Right front: Economy burner up to 1 KW (depending on gas type) |
Cleaning
| Dishwasher suitable pan supports for easy cleaning. |
| Cast iron pan supports with rubber feet: little weight and compact form, yet high stability due to continuous surface. |
Safety
| Flame failure safety device: prevents unwanted gas flow when flame goes out. |
Installation (gas types & measurements)
| Usable for: Nat gas L/LL G25/20mbar(DE) NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar |
| Pre-set for natural gas |
| Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service. |
| Dimensions of the product (HxWxD mm): 57.4 x 590 x 520 |
| Required niche size for installation (HxWxD mm) : 45 x 560 x (480 - 490) |
| Min. worktop thickness: 20 mm |
| Power cord: 1 m |
| Connected load: 7.5 KW |
| frameless: install the hob either flush or slightly raised on the worktop |
| If installed flush, minimum worktop thickness is 30mm. |
Model: PNP6B6K40
