Name: Series 6, 70cm Canopy Cooker Hood | Black
Brand: Bosch
SKU: DLN77AC60B
Price: 669.0 EUR
Availability: InStock

Roll over image to zoom in Click on image to zoom

High extraction rate - for continuously clean air in the kitchen.

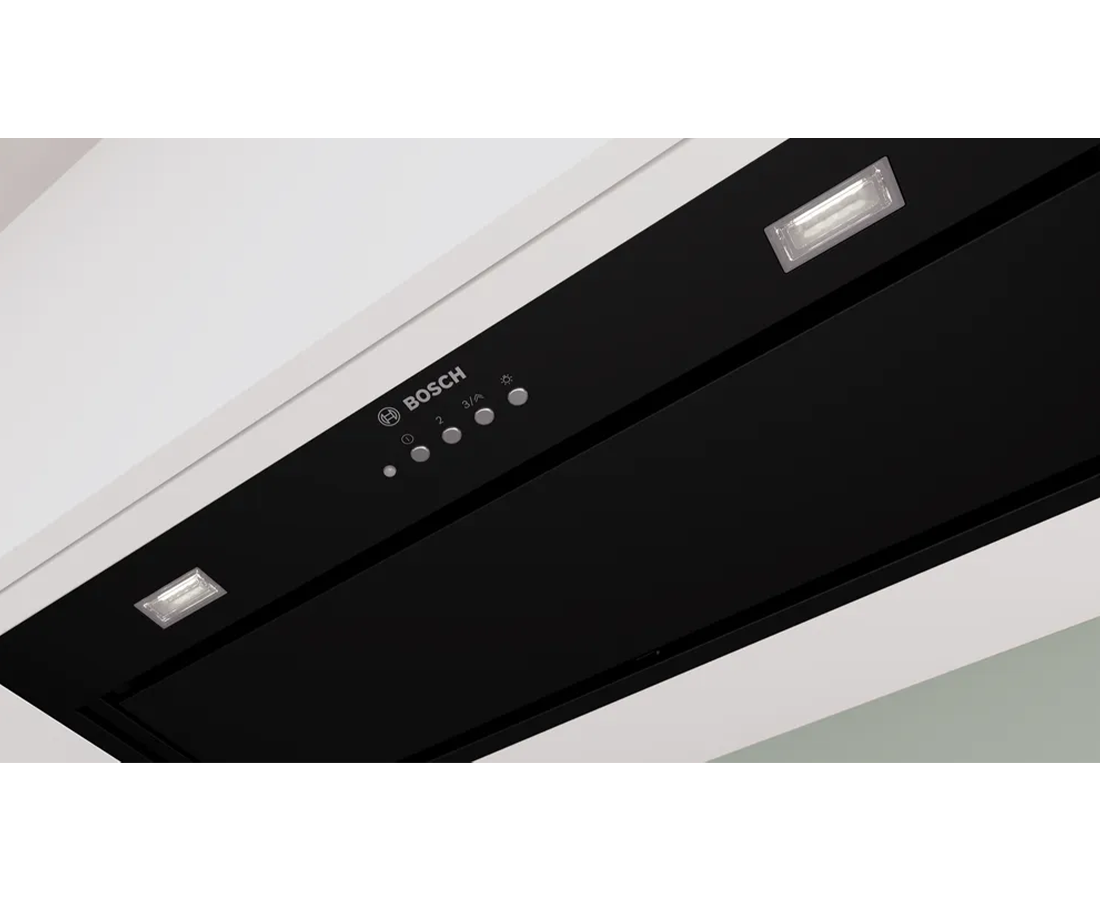

LED Illumination: the energy-saving lighting provides a clear and bright illumination for your hob area.

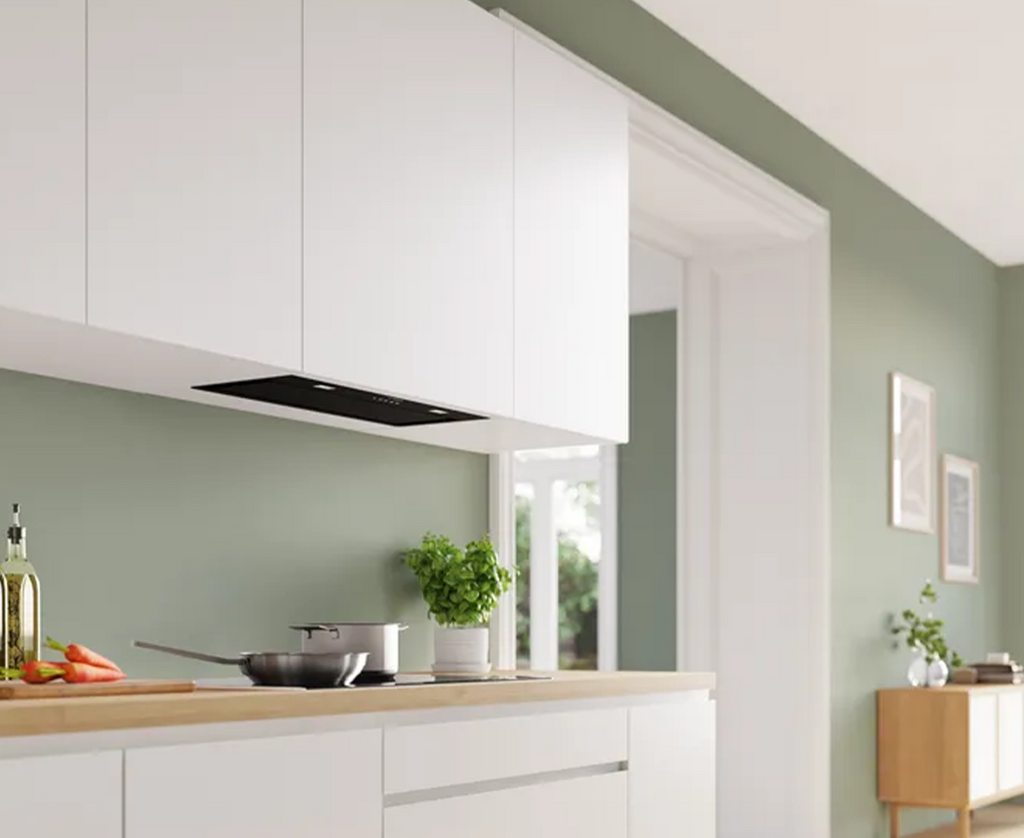

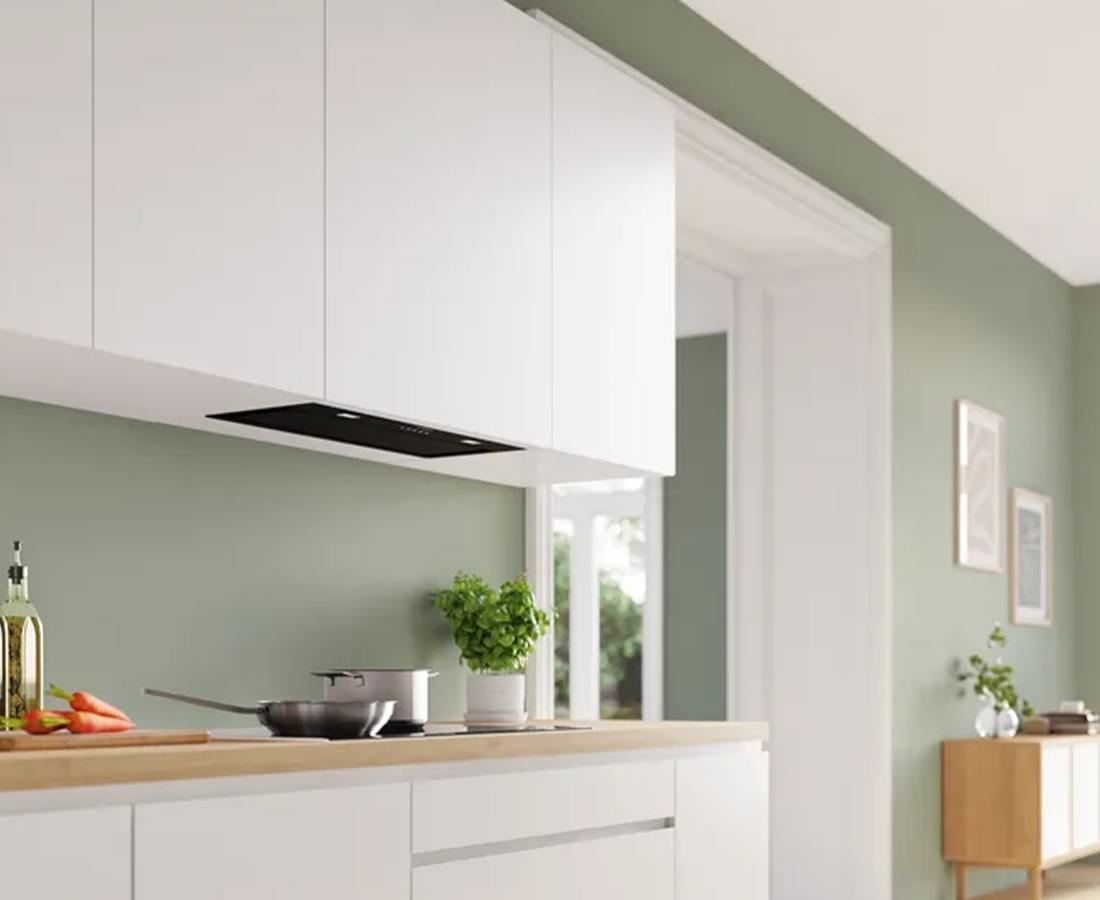

Seamless integration: thanks to flush installation, the canopy hood is almost invisible in upper cabinets.
Intensive Setting: the powerful way to beat intense steam during cooking.

Canopy hood
For installation in a kitchen cabinet

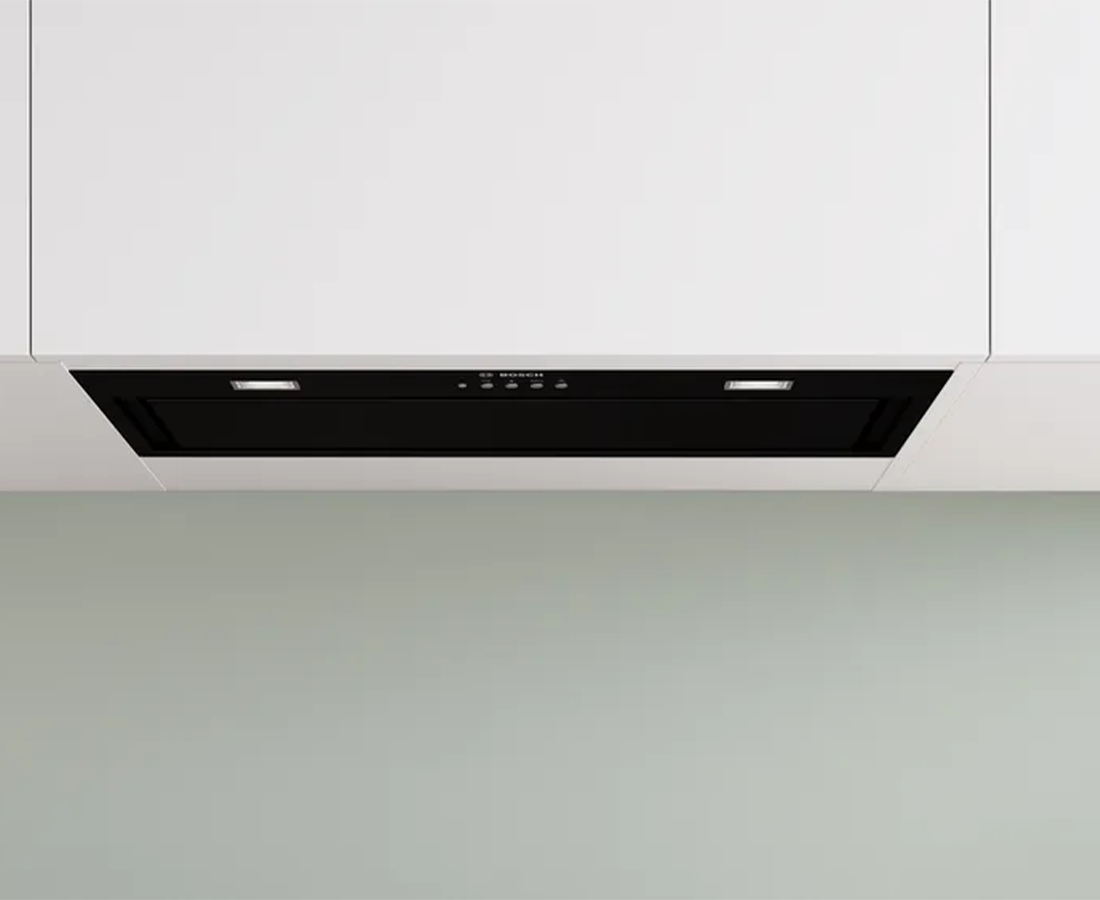

Flush-fitted installation for a seamless integration in wall cupboards.
Suitable for ducted or recirculating operation
For recirculated extraction various recirculation kits are available as optional accessories.

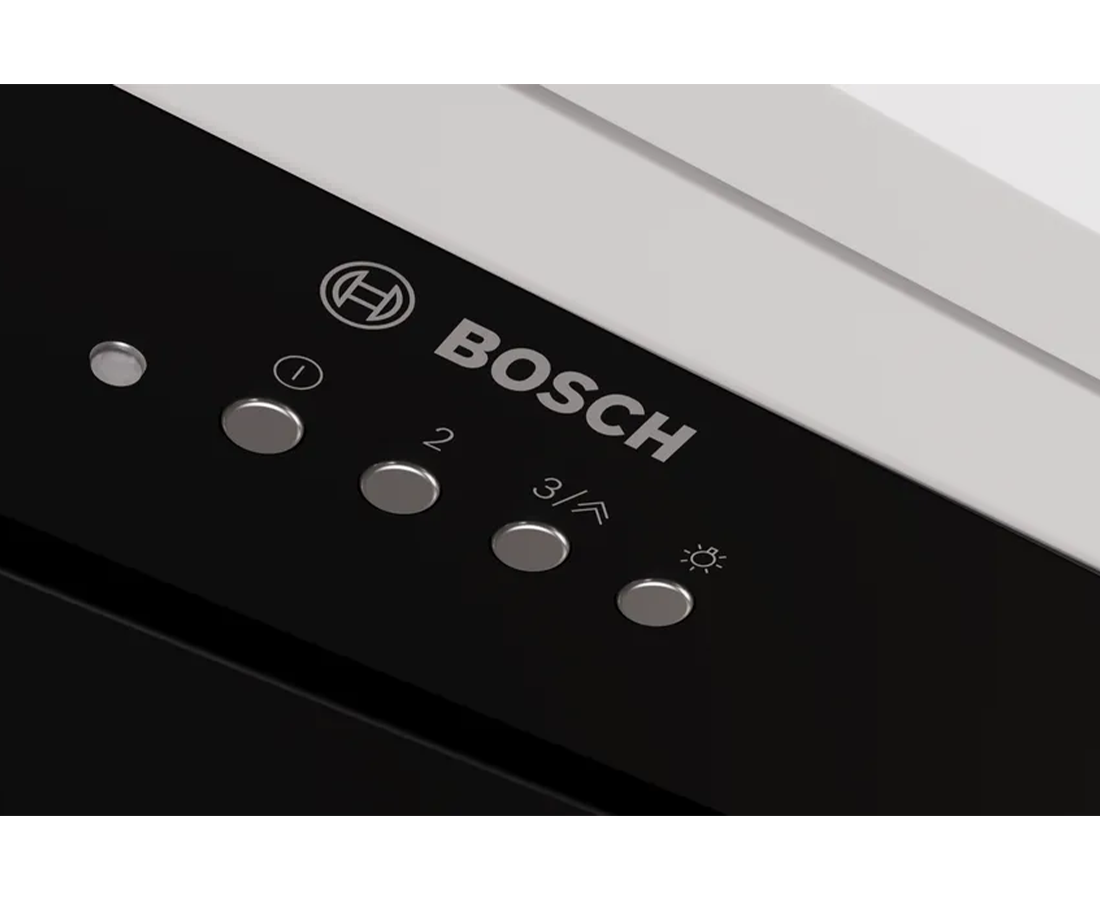

Soft touch button control with Electronic display
3 power levels & intensive setting
Automatic reset from intensive to normal setting after 6 min

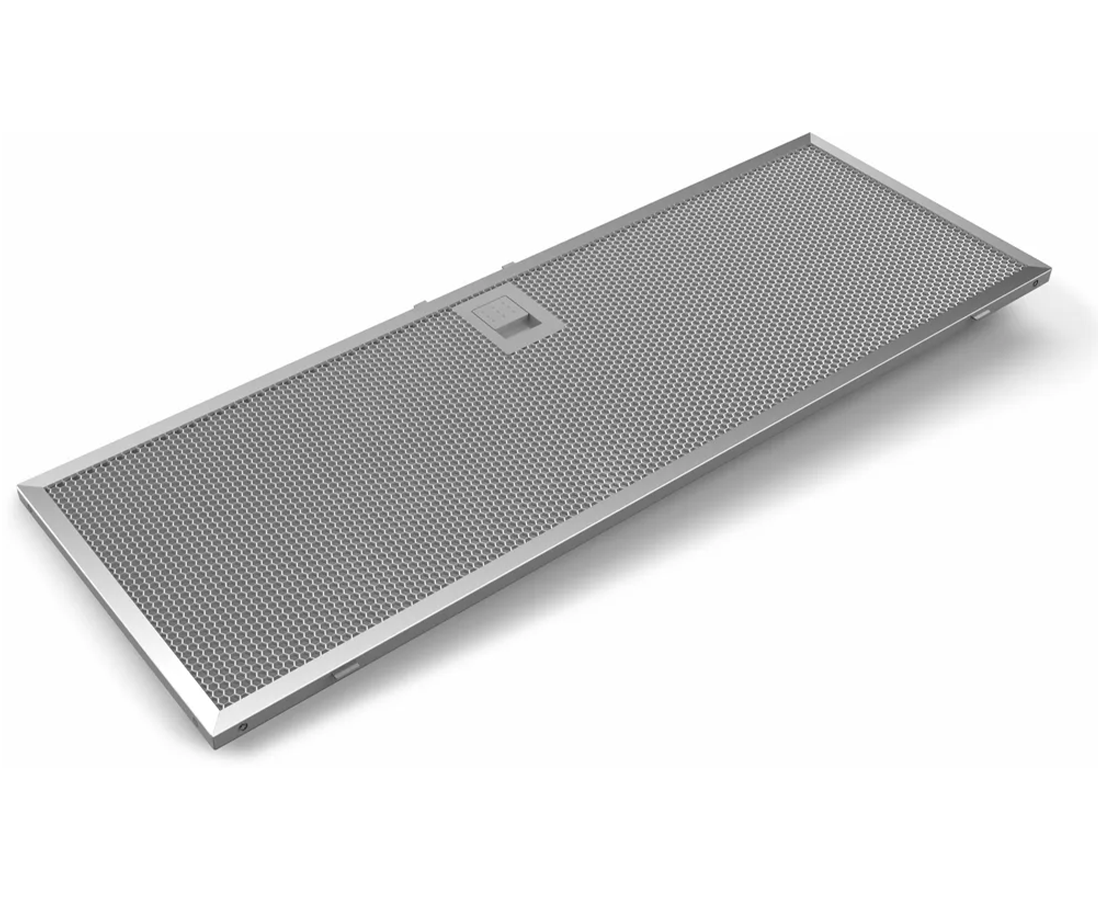

Removable metal grease filters dishwasher-safe
Easy to clean smooth surfaces and materials.

According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 270 m3/h; noise level 45 dB (A) re1pW Speed 2: extraction rate 400 m3/h; noise level 53 dB (A) re1pW Speed 3: extraction rate 595 m3/h; noise level 63 dB (A) re1pW Intensive 1: extraction rate 730 m3/h; noise level 68 dB (A) re1pW
Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
Average Energy Consumption: 55.5 kWh/year*
Blower Efficiency Class: A*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: D*

According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 250 m3/h; noise level 65 dB (A) re1pW Speed 2: extraction rate 350 m3/h; noise level 71 dB (A) re1pW) Speed 3: extraction rate 400 m3/h ; noise level 74 dB (A) re1pW) Intensive Speed 1: extraction rate430 m3/h; noise level 75 dB (A) re1pW)
According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for chimless installation (available as optional accessory): Speed 1: extraction rate 260 m3/h ; noise level 53 dB (A) re1pW Speed 2: extraction rate 385 m3/h ; noise level 71 dB (A) re1pW) Speed 3: extraction rate 580 m3/h ; noise level 70 dB A) re1pW) Intensive Speed 1: extraction rate 705 m3/h ; noise level 73 dB (A) re1pW)

Consumption data:
Power rating: 252 W
Voltage: Nominal voltage: 220 - 240 V
Sustainability:
Environmentally friendly packaging
Available odour filter as regenerative Long Life filter with 10 years lifetime

Dimensions (HxWxD): 345 x 700 x 282 mm
Dimensions recirculating (HxWxD): 345-345 x 700 x 282 mm
Built-in dimensions (HxWxD): 345 x 676 x 264 mm
Please reference the built-in dimensions provided in the installation drawing
Electrical cable length 1.5 m
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Back-pressure flap: Yes
